LSIS SV-IS7 - Page 36

Installing the Inverter
Installing
the Inverter
25

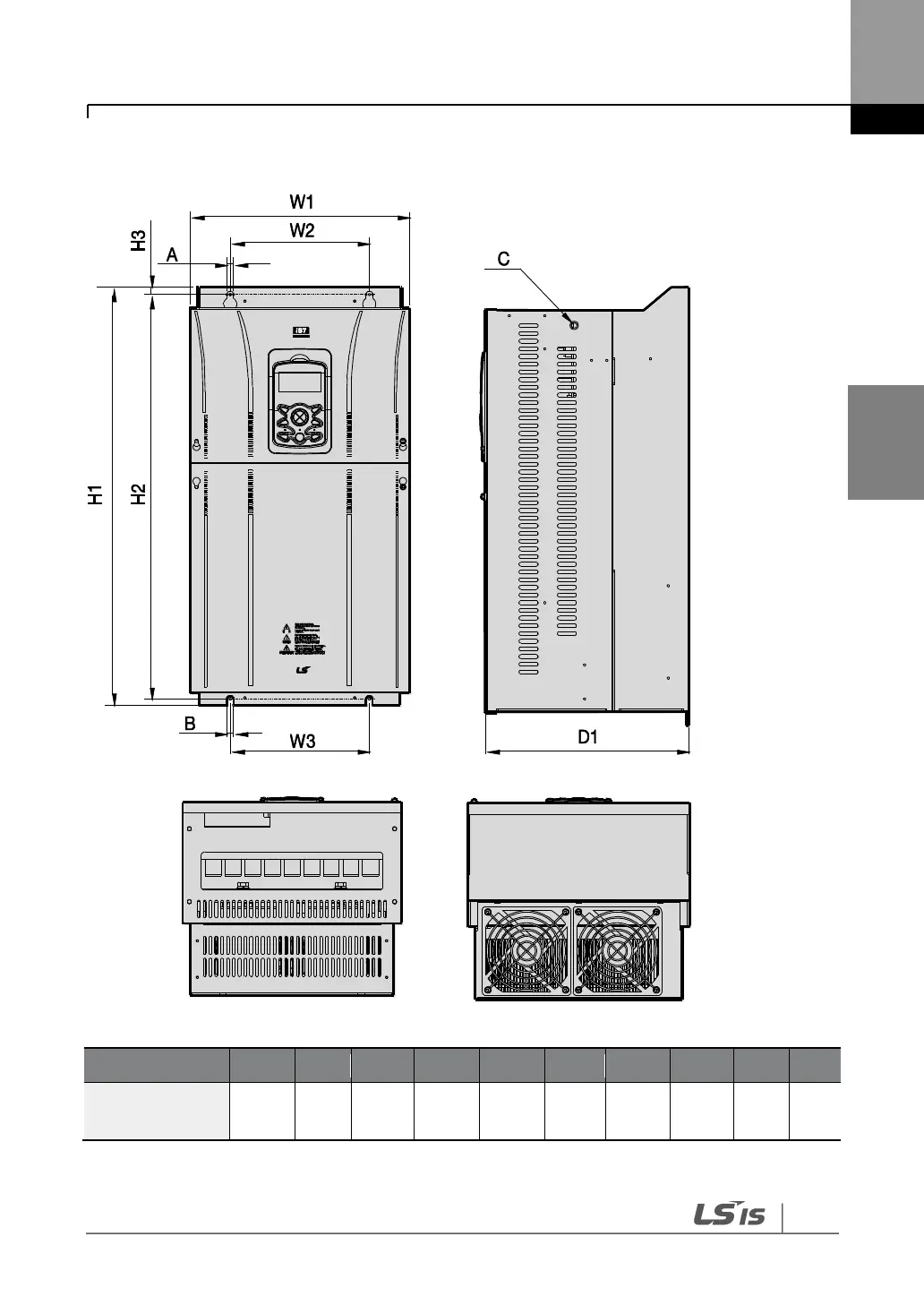

SV0300-iS7 (200 V, IP00 Type)
Units: mm (inch)
Inverter Capacity
W1
W2
W3
H1
H2
H3
D1
A
B
C
SV0300 iS7-2
300
(11.81)
190
(7.48)
190
(7.48)
570
(22.44)
552
(21.73)
10
(0.39)
265.2
(10.44)
10
(0.39)
10
(0.39)
M8
