Installing the Inverter
26

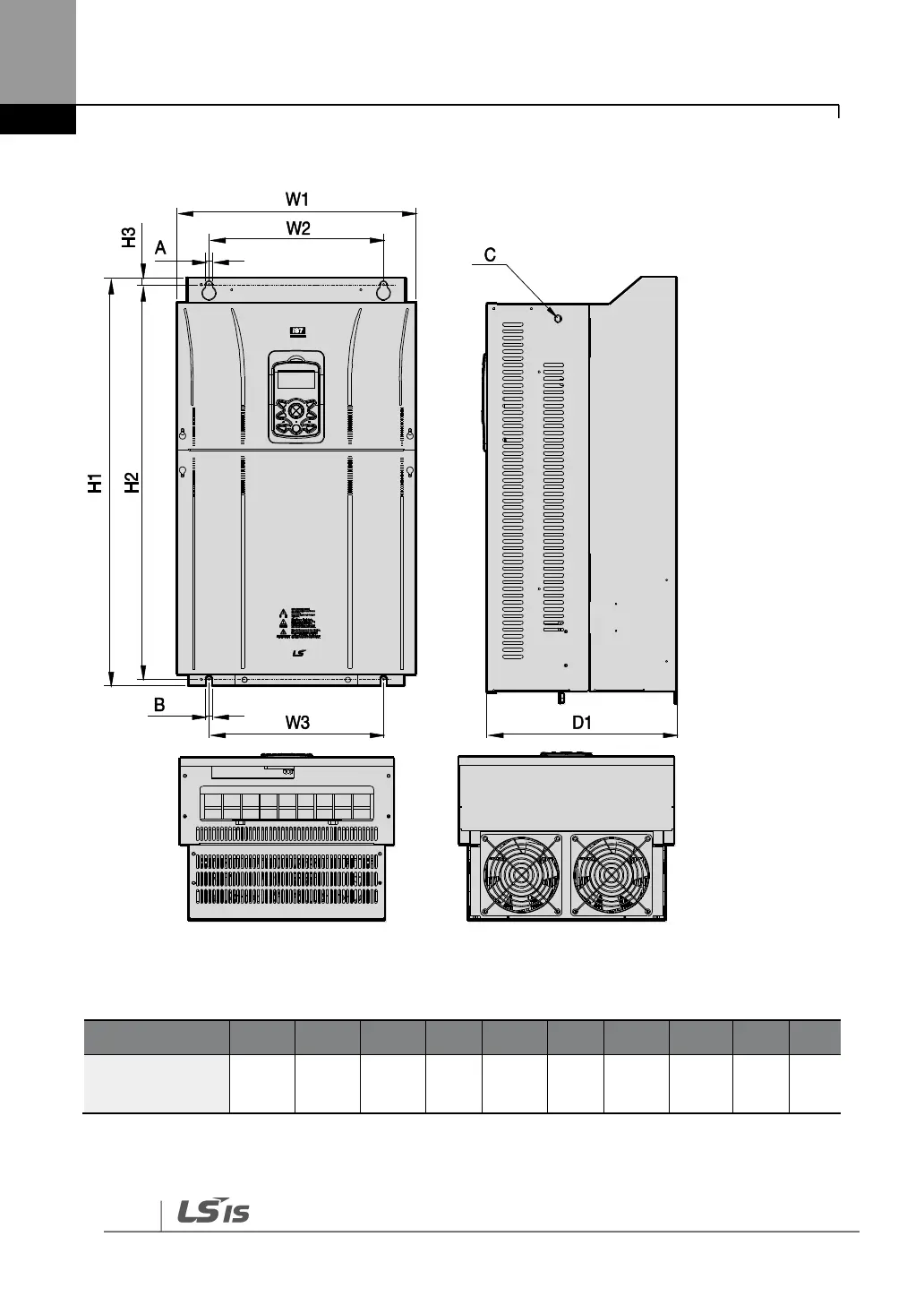

SV0370-0450iS7 (200 V, IP00 Type)
Units: mm (inch)
Inverter Capacity
W1
W2
W3
H1
H2
H3
D1
A
B
C
SV0370–0450
iS7-2
370
(14.56)
270
(10.63)
270
(10.63)
630
(24.8)
609
(23.97)
11
(0.43)
281.2
(11.07)
10
(0.39)
10
(0.39)
M10
