LSIS SV-IS7 - Page 38

Installing the Inverter
Installing
the Inverter
27
SV0300-0450iS7 (400 V)

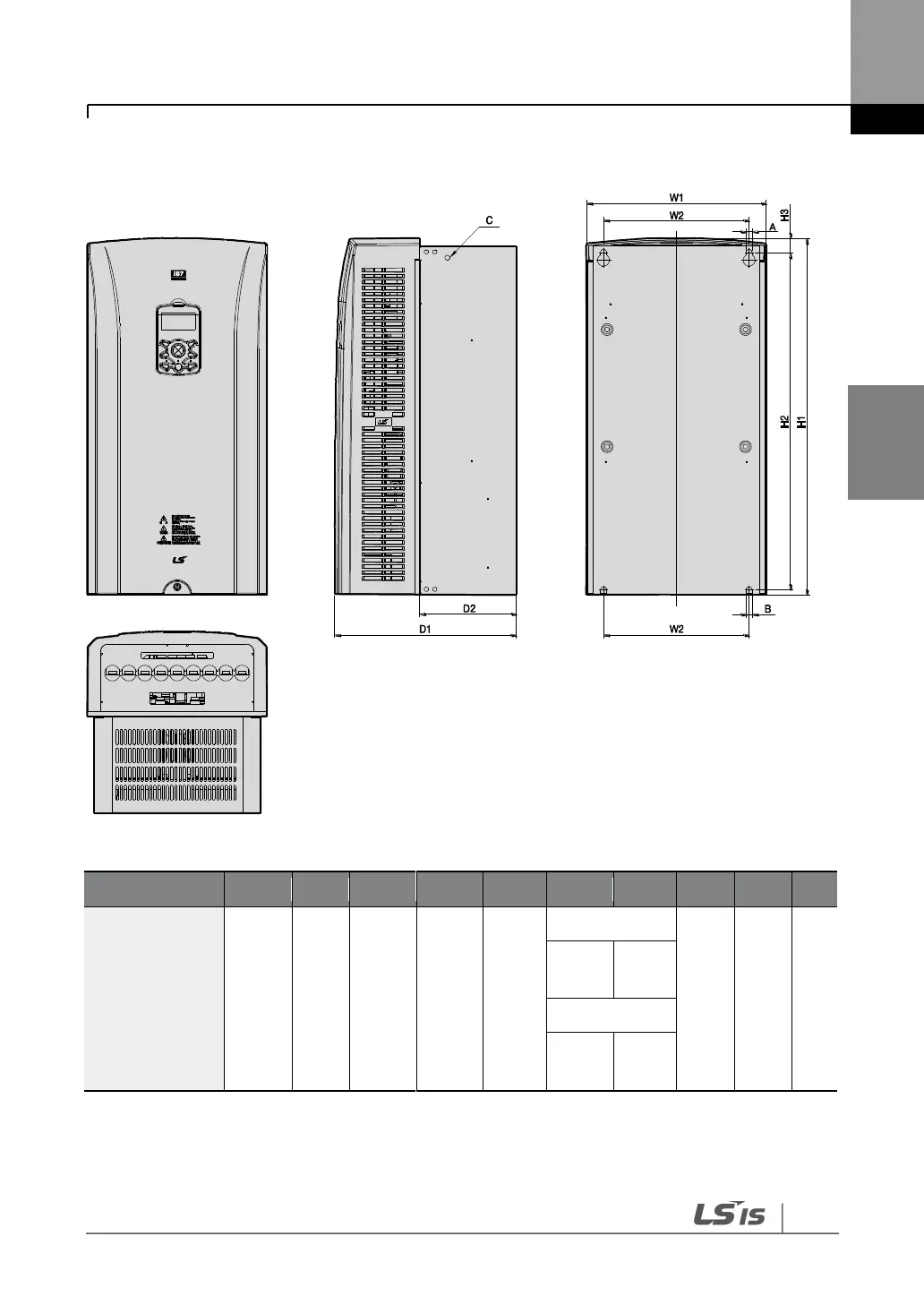

Units: mm (inch)
Inverter Capacity
W1
W2
H1
H2
H3
D1
D2
A
B
C
SV300–450
iS7-4
300.1
(11.81)
242.8
(9.55)
594.1
(23.38)
562
(22.12)
24.1
(0.94)
DCR type
10
(0.39)
10
(0.39)
M8
303.2
(11.93)
161
(6.33)
Non-DCR type
271.2
(10.67)
129
(5.78)
