LSIS SV-IS7 - Page 39

Installing the Inverter
28

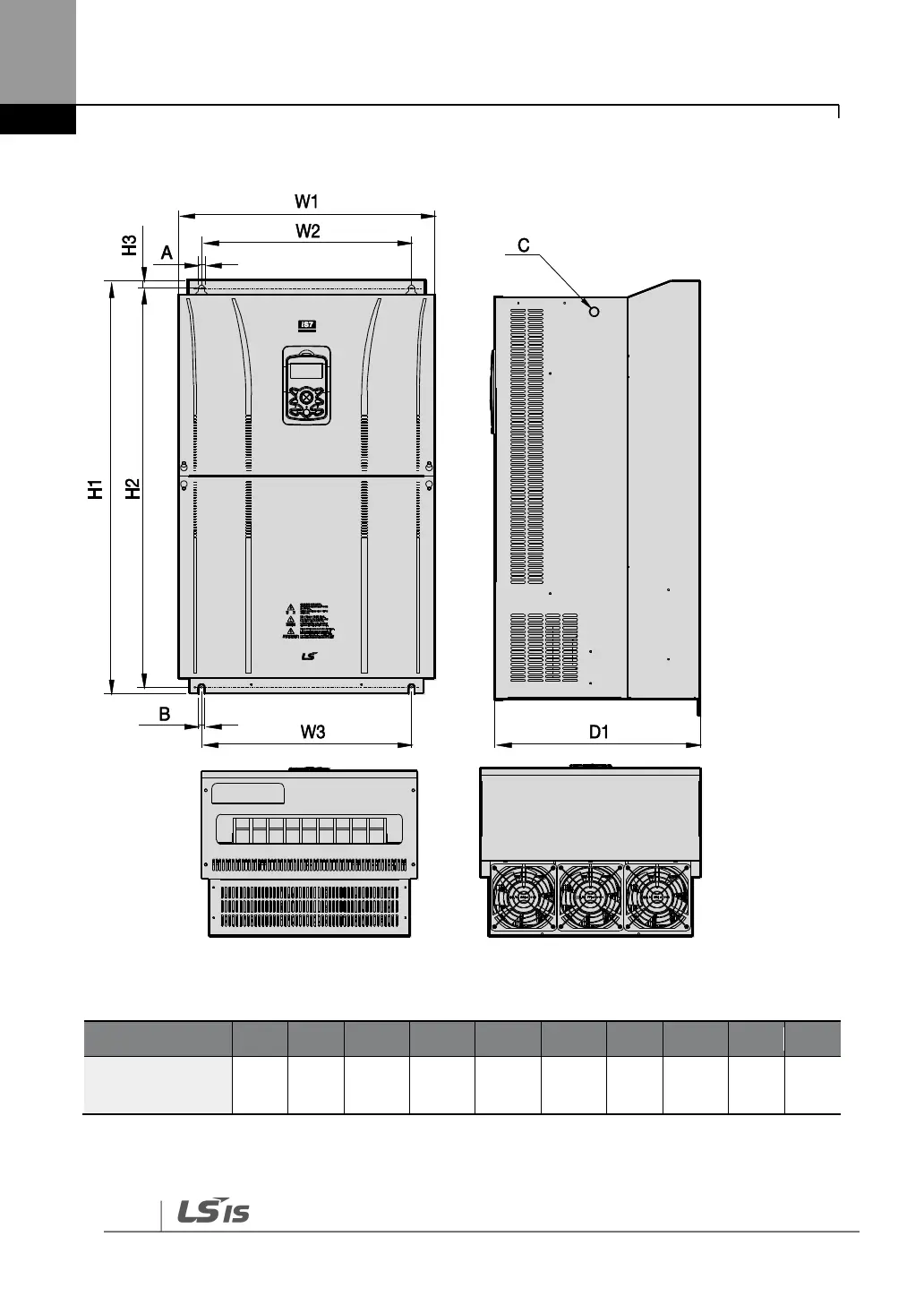

SV0550-0750iS7 (200 V, IP00 Type)
Units: mm (inch)
Inverter Capacity
W1
W2
W3
H1
H2
H3
D1
A
B
C
SV0550–0750
iS7-2
465
(18.3)
381
(15.0)
381
(15.0)
750
(29.52)
723.5
(28.48)
15.5
(0.61)
355.6
(14.0)
11
(0.43)
11
(0.43)
M16
