Installing the Inverter
30

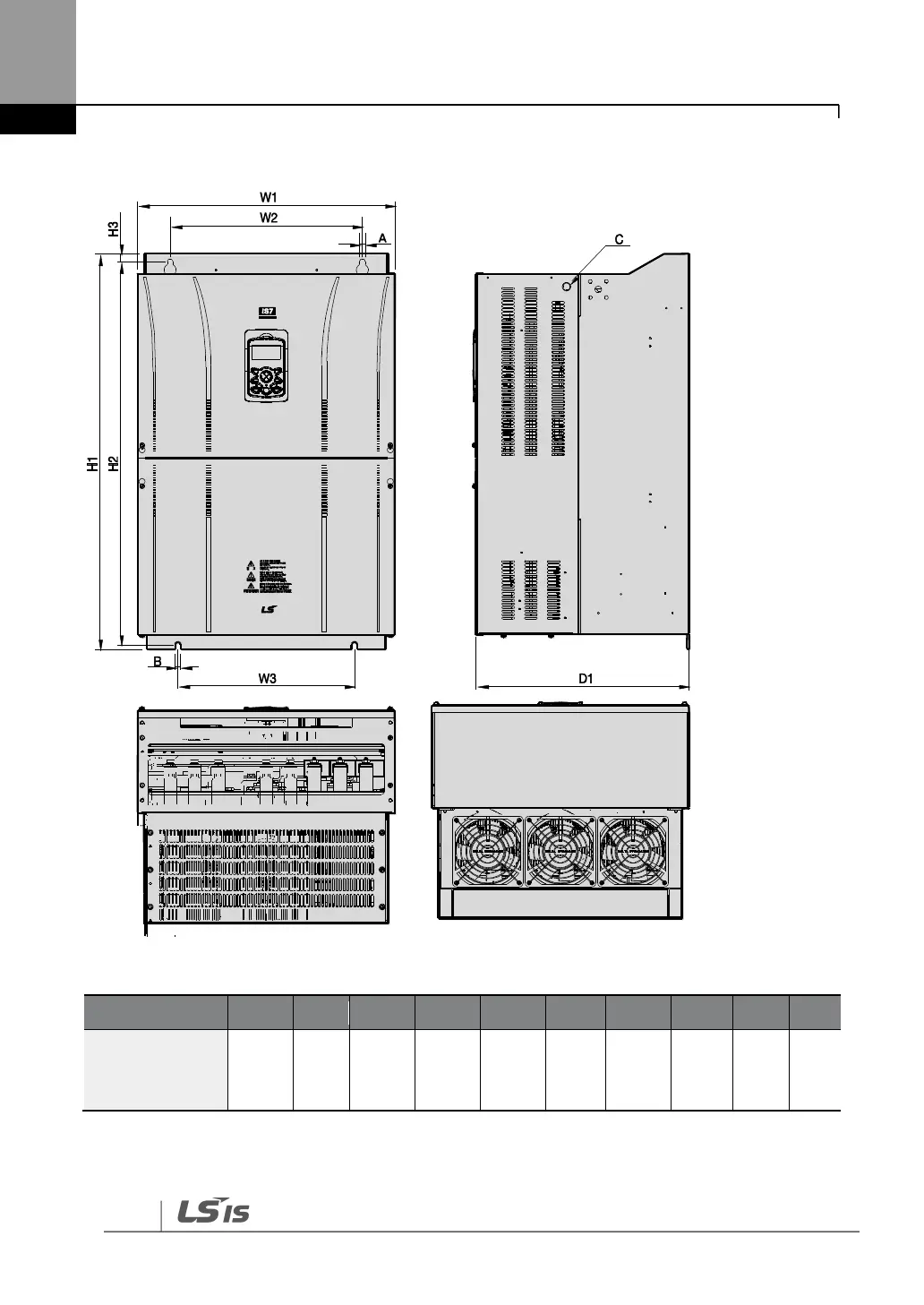

SV0900-1100iS7 (400 V, IP00 Type)
Units: mm (inch)
Inverter Capacity
W1
W2
W3
H1
H2
H3
D1
A
B
C
SV0900–1100
iS7-4
510
(20.07)
381
(15.0)
350
(13.77)
783.5
(30.84)
759
(29.88)
15.5
(0.61)
422.6
(16.63)
11
(0.43)
11
(0.43)
M16
