REPAIR INSTRUCTIONS, PART 1
281

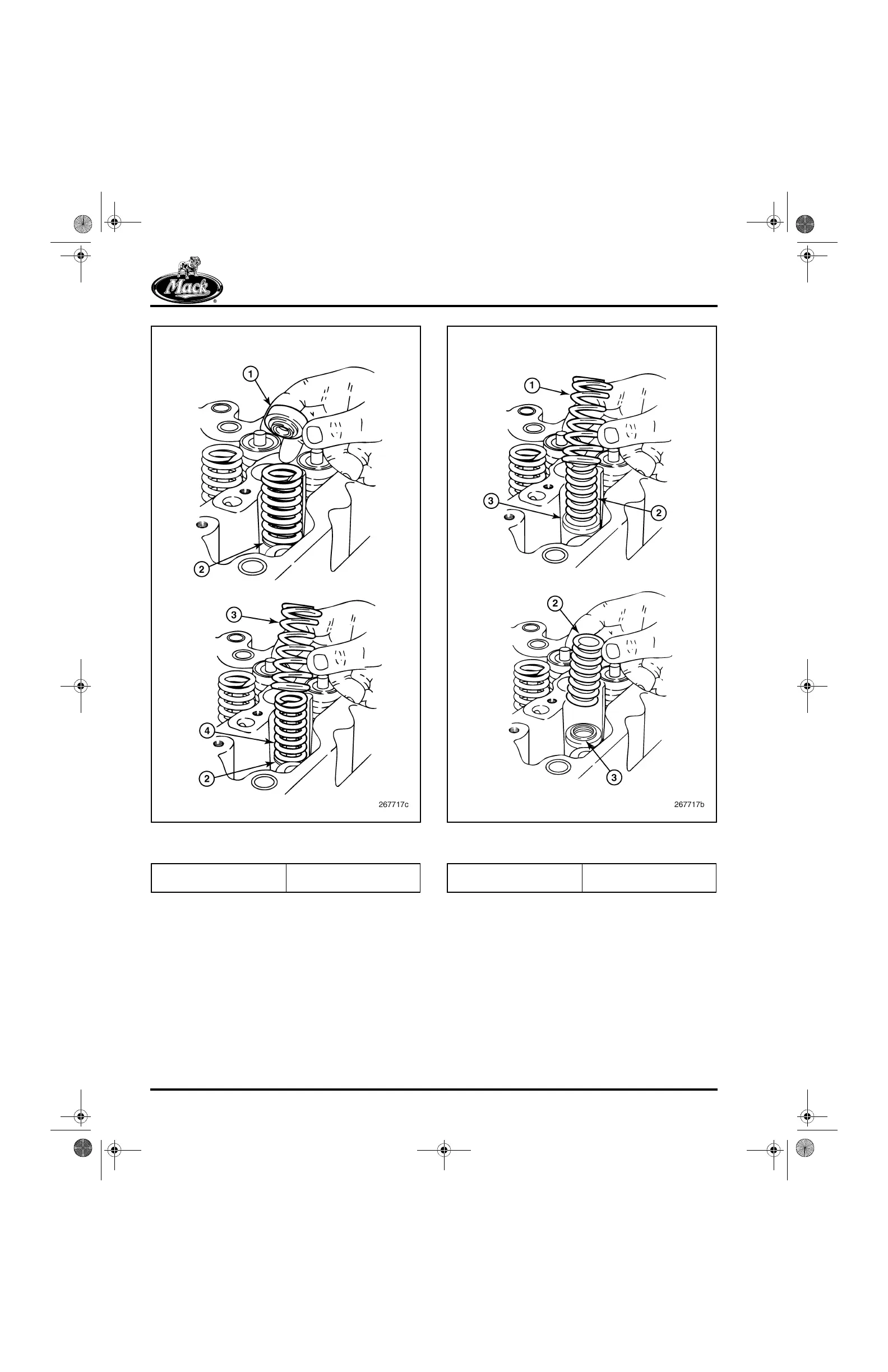

Figure 281 — Spring and Tip-End Rotator Installation (to
Mid-Year 2003)
282
Figure 282 — Spring and Bottom Rotator Installation
(Mid-Year 2003 and Later)
1. Spring Rotator (Tip-End)
2. Spring Seat
3. Outer Exhaust Spring
4. Inner Exhaust Spring
1. Outer Exhaust Spring
2. Inner Exhaust Spring
3. Spring Rotator (Bottom)
