REPAIR INSTRUCTIONS, PART 1
Page 257
7. Install the tip-end rotators or valve retaining
washers onto the inlet and exhaust valves.
Ensure that the correct rotator, inlet or
exhaust, is installed at the correct location.
Inlet rotators have a flat bottom surface for a
single-spring installation while the exhaust
rotators have a stepped surface to
accommodate inner and outer springs.
283

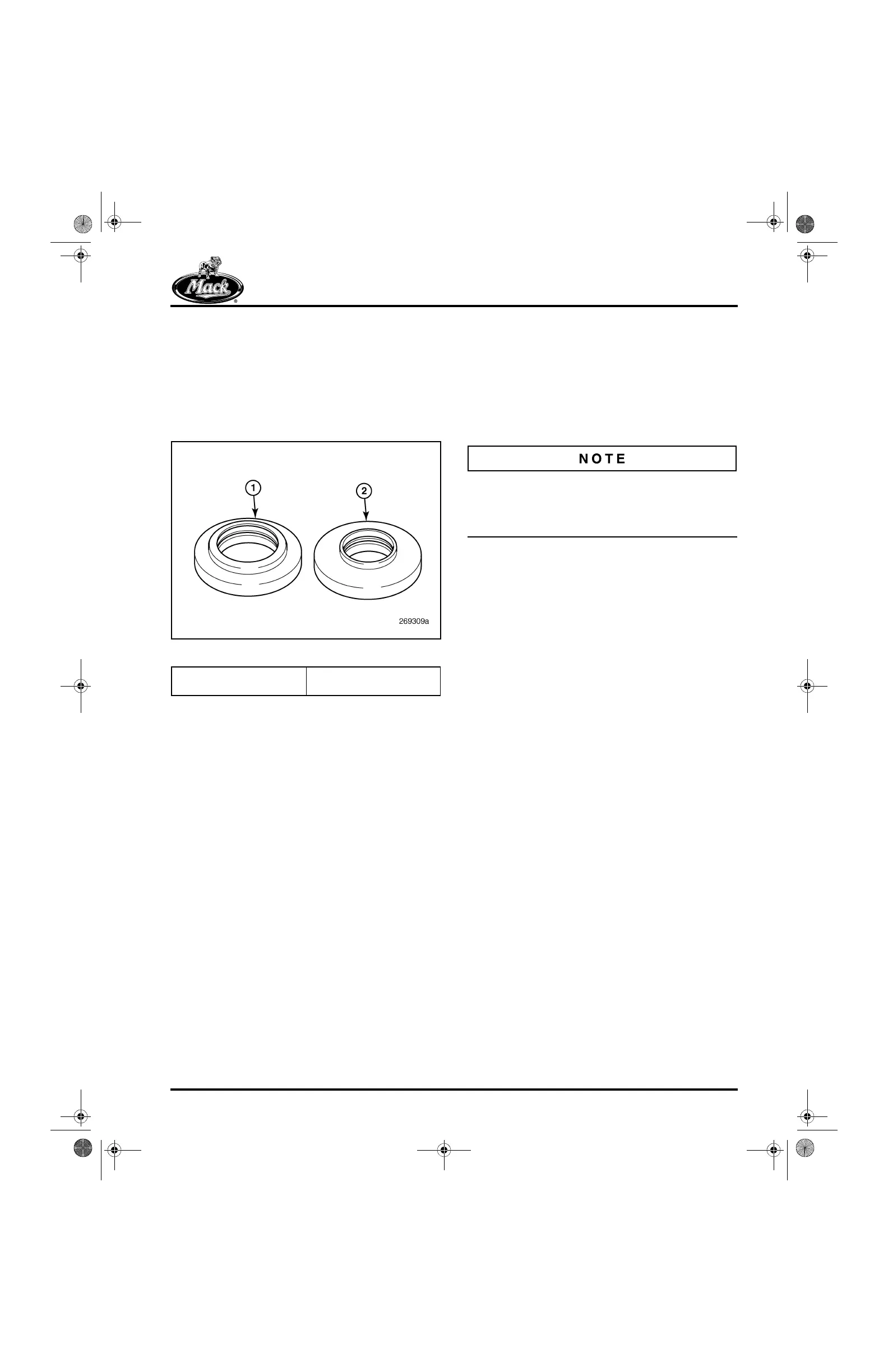

Figure 283 — Exhaust and Inlet Rotators
8. Reattach the valve spring compressor to the
cylinder head. Use spring compressor
J 43887 for valves with tip-end rotators or
J 29294-B for valves with bottom rotators.
9. Depress the tool handle until the valve
spring is compressed. Install the valve
keepers into the rotators or valve spring
retaining washers using a magnet.
Valve spring compressor J 43887 or J 29294-B
must be repositioned for each series of valves
(two inlet and two exhaust per cylinder). Drilled
and tapped holes are provided for each cylinder.
1. Rotator for Dual Springs
(Exhaust Locations)
2. Rotator for Single Valve
Spring (Inlet Locations)
