REPAIR INSTRUCTIONS, PART 1
284

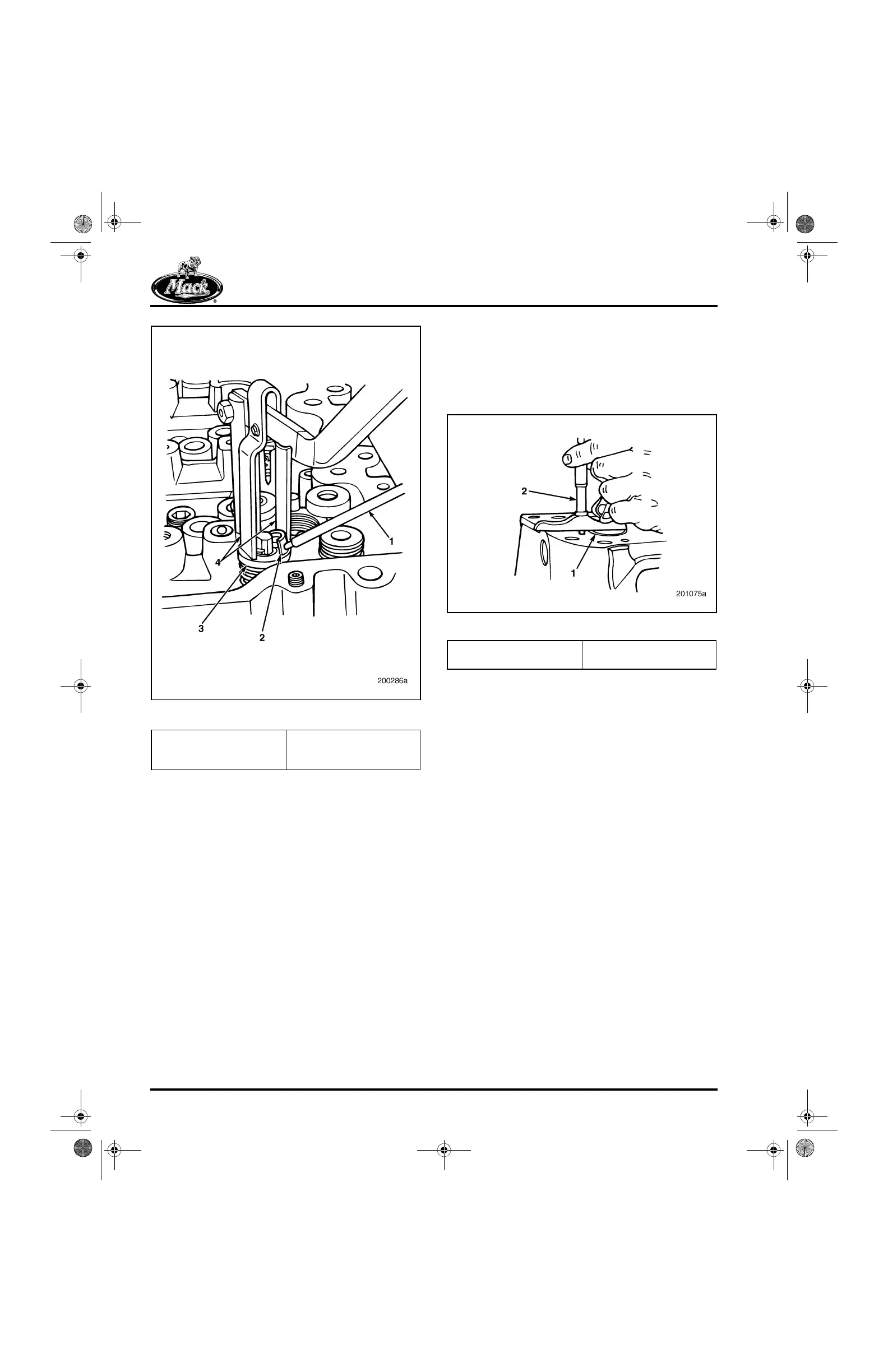

Figure 284 — Valve Spring Keeper Installation
10. After the valves are installed, check each
inlet valve for head height above the cylinder
deck. The protrusion dimension for inlet
valves should be 0.0425 +0.009/−0.007 inch
(1.0795 +0.229/−0.178 mm). Refer to
Figure 285 and Figure 286.
285
Figure 285 — Checking Valve Assembly Height
11. Check each exhaust valve for head depth
below the cylinder deck. The depth
dimension for the exhaust valve should be
0.021 +0.009/−0.007 inch (0.553
+0.229/−0.178 mm).
1. Magnet
2. Valve Spring Keys
(Keepers)
3. Tip-End Rotator or Valve
Retaining Washer
4. Tool Compression Forks
1. Inlet Valve 2. Depth/Height
Measurement Tool
