IGNITION
90-857046R1 NOVEMBER 2001 Page 2A-25

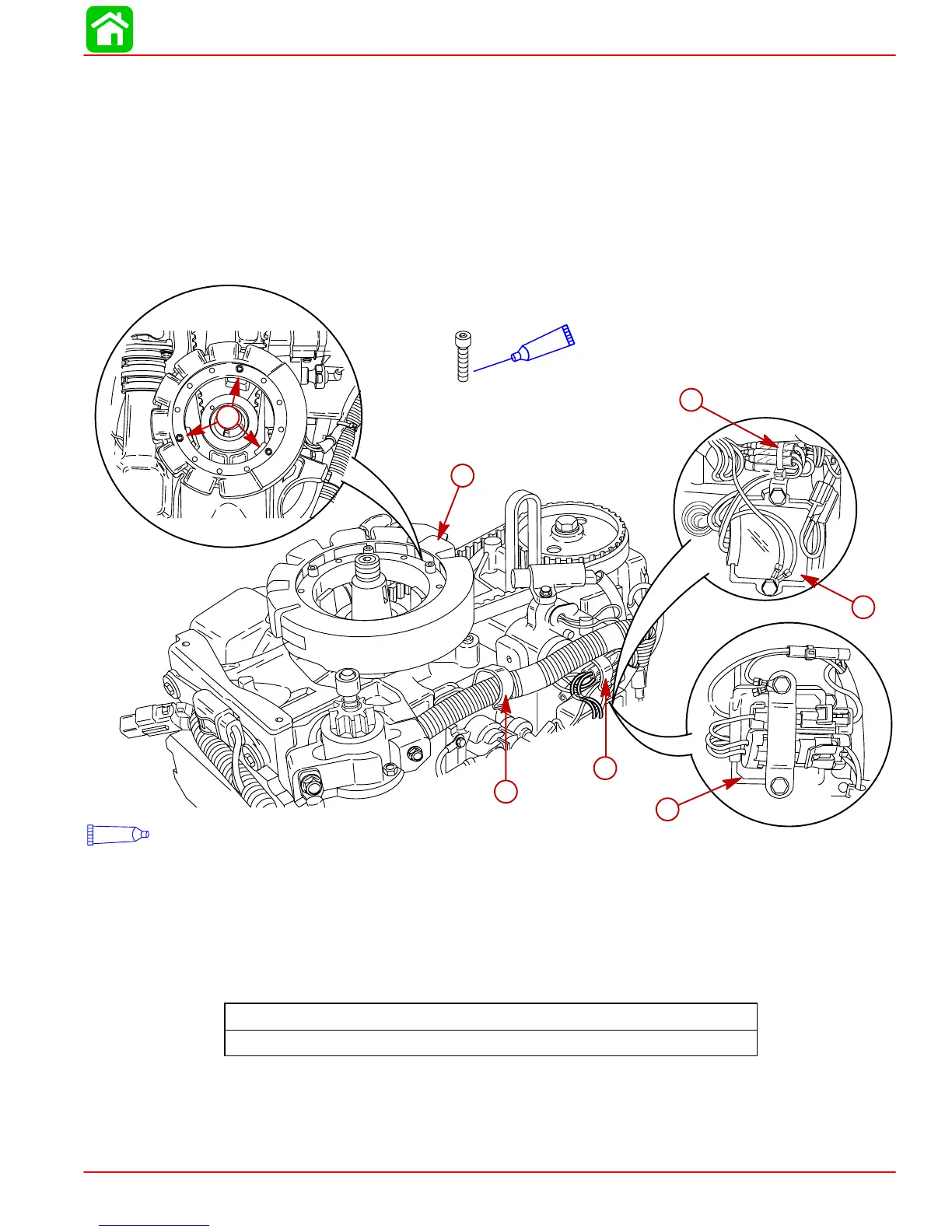

Stator Removal and Installation
1. Remove stator harness from j-clips (s/n OG960499 and below).
2. Remove cable tie from bundled wire connectors (s/n OG960499 and below).
3. Disconnect stator wires.
4. Remove stator mounting screws.
5. Reverse steps for installation (refer to wiring diagram Section 2D for correct stator wire
connections).
51
Loctite “222”
51
d
b
a
e
f
c
b
a-Stator
b-J-Clips
c-Cable Tie
d-Screws (3) M5 x 30 (Electric) or M5 x 25 (Manual)
e-Voltage Regulator/Rectifier (s/n og960499 and below)
f-Voltage Regulator/Rectifier (s/n og960500 and up)
Stator Screw Torque
85 lb. in. (9.5 N·m)
