MANUAL STARTER
Page 8-14 90-857046R1 NOVEMBER 2001
Manual Starter Installation

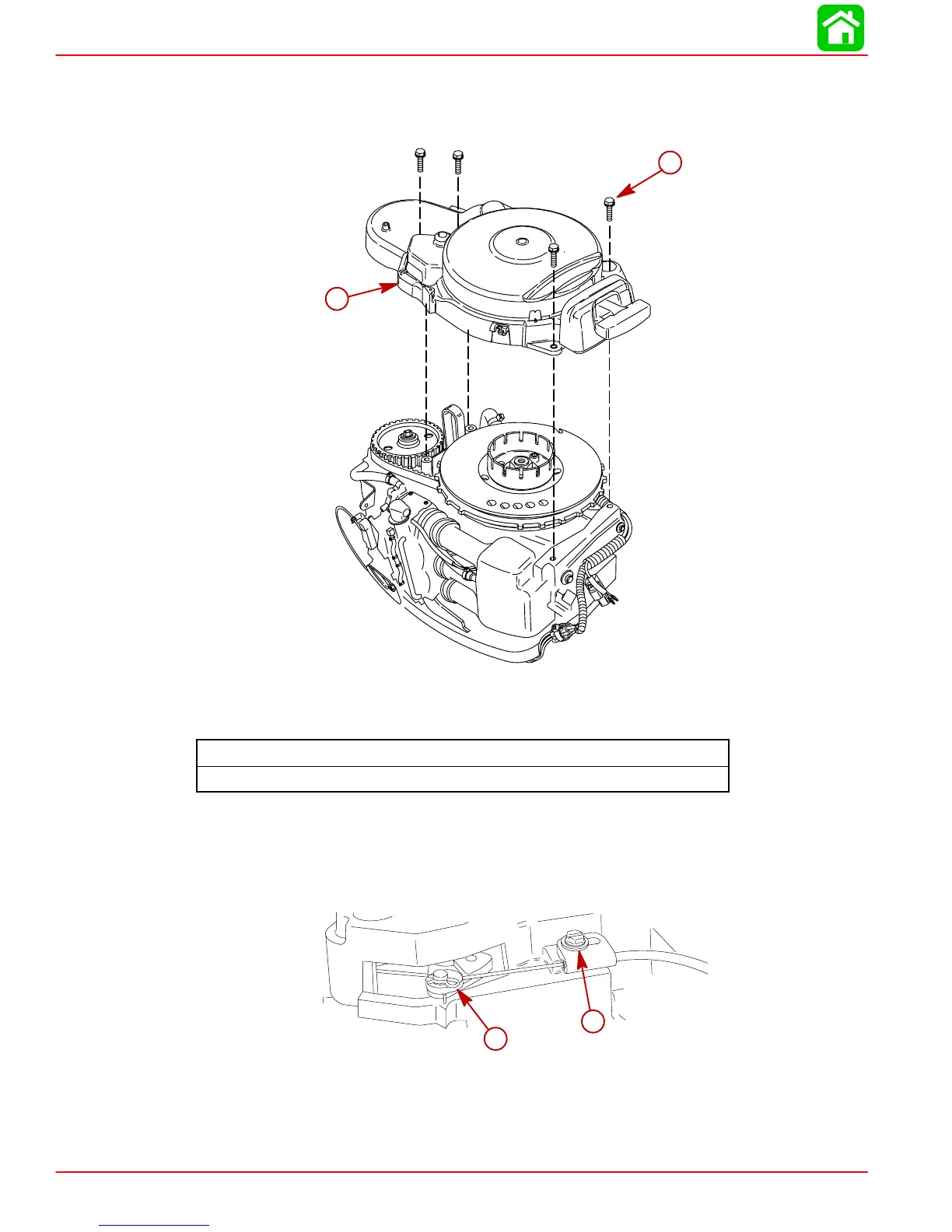

1. Secure manual starter with screws.
a
b
a-Screws (4) - M6x25
b-Manual Starter
Manual Starter Screw Torque
60 lb. in. (7 N·m)
2. Install interlock cable onto cam boss and secure with retaining clip.
3. Secure interlock cable to rewind housing with adjustment screw.
NOTE: Interlock cable should be adjusted after installation. Refer to interlock cable adjust-
ment procedures.
b
a
a-Retaining Clip
b-Adjustment Screw
