POWER TRIM
90-857046R1 NOVEMBER 2001 Page 5B-29

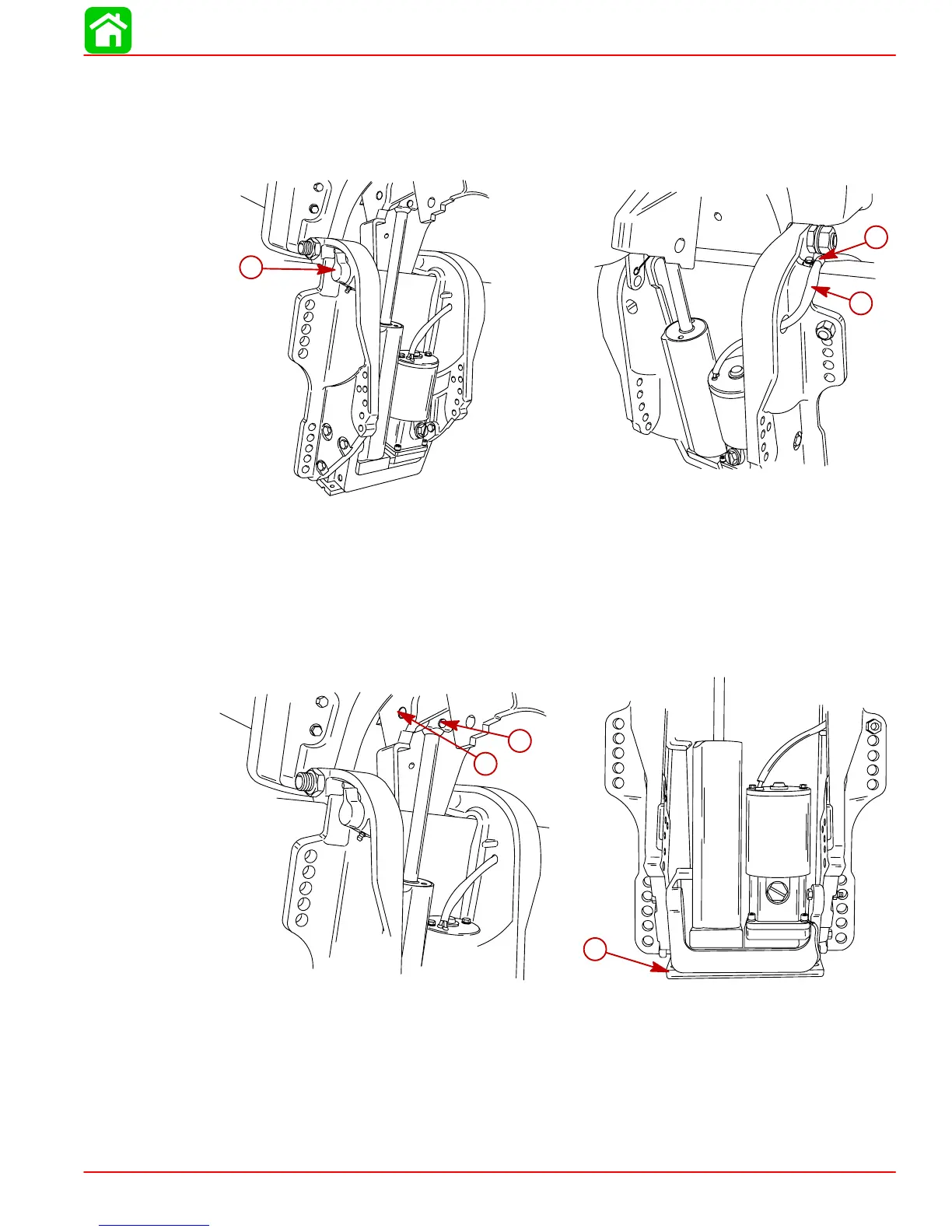

Power Trim System Removal
1. Tilt outboard to the full up position and support with tilt lock pin.
2. Disconnect the power trim wire harness and remove clamp.
55264
b
c
55464
a
a-Tilt Lock Pin
b-Power Trim Wire Harness Clamp
c-Harness
3. Remove the upper trilobe pin.
4. Drive out the upper pivot pin.
5. Remove the sacrificial anode.
55331
c
b
a
a-Upper Trilobe Pin
b-Upper Pivot Pin
c-Sacrificial Anode
