POWER TRIM
90-857046R1 NOVEMBER 2001 Page 5B-45
Manifold Installation

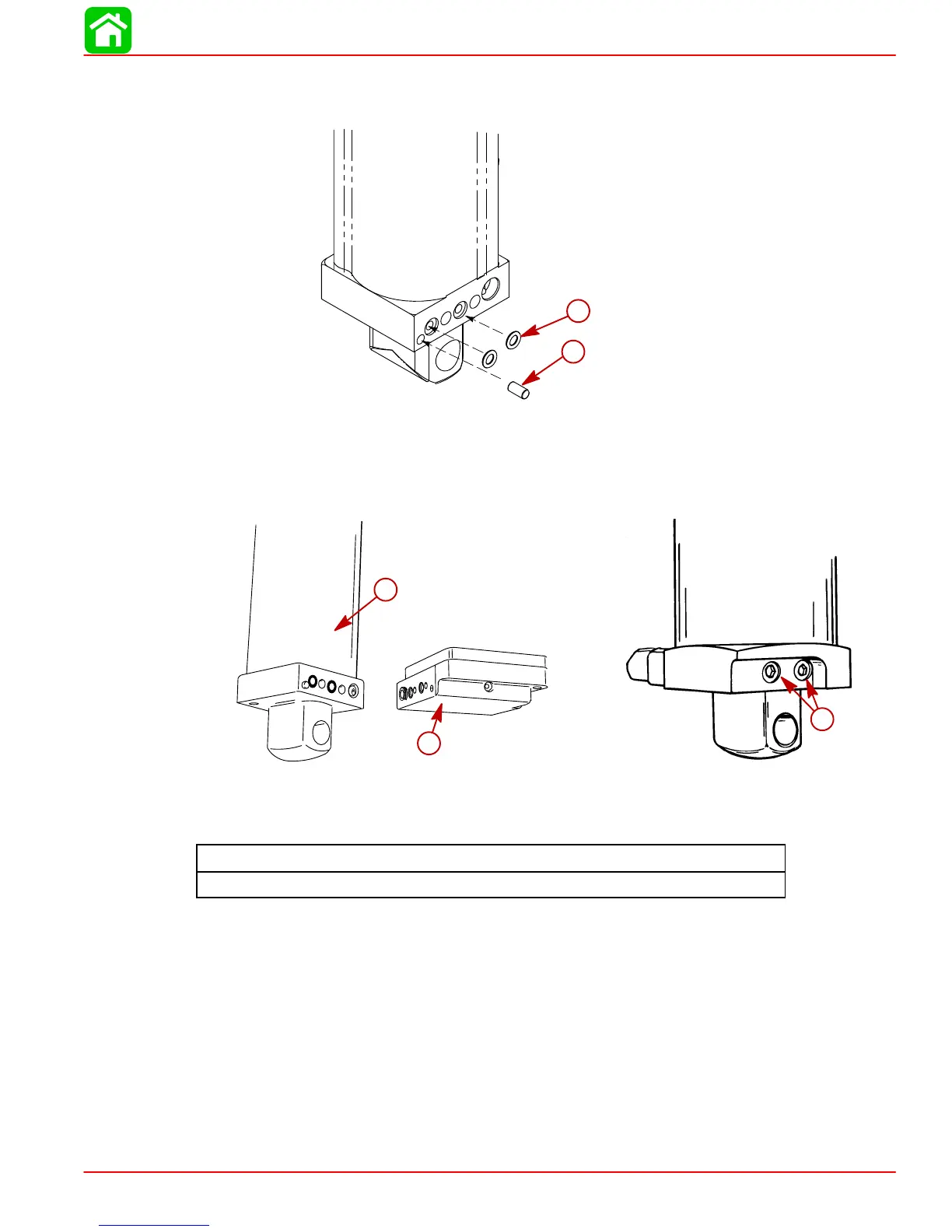

1. Install dowel pin and two (2) lubricated o-rings into trim cylinder.
b
a
a-O-Ring (2)
b-Dowel Pin
2. Align the trim cylinder and pump/reservoir assembly together.
3. Install the two (2) long screws and tighten to specified torque.
51146
a
b
c
a-Trim Cylinder Assembly
b-Reservoir/Manifold Assembly
c-Screw (2)
Screw Torque
100 lb-in (11.0 Nm)
