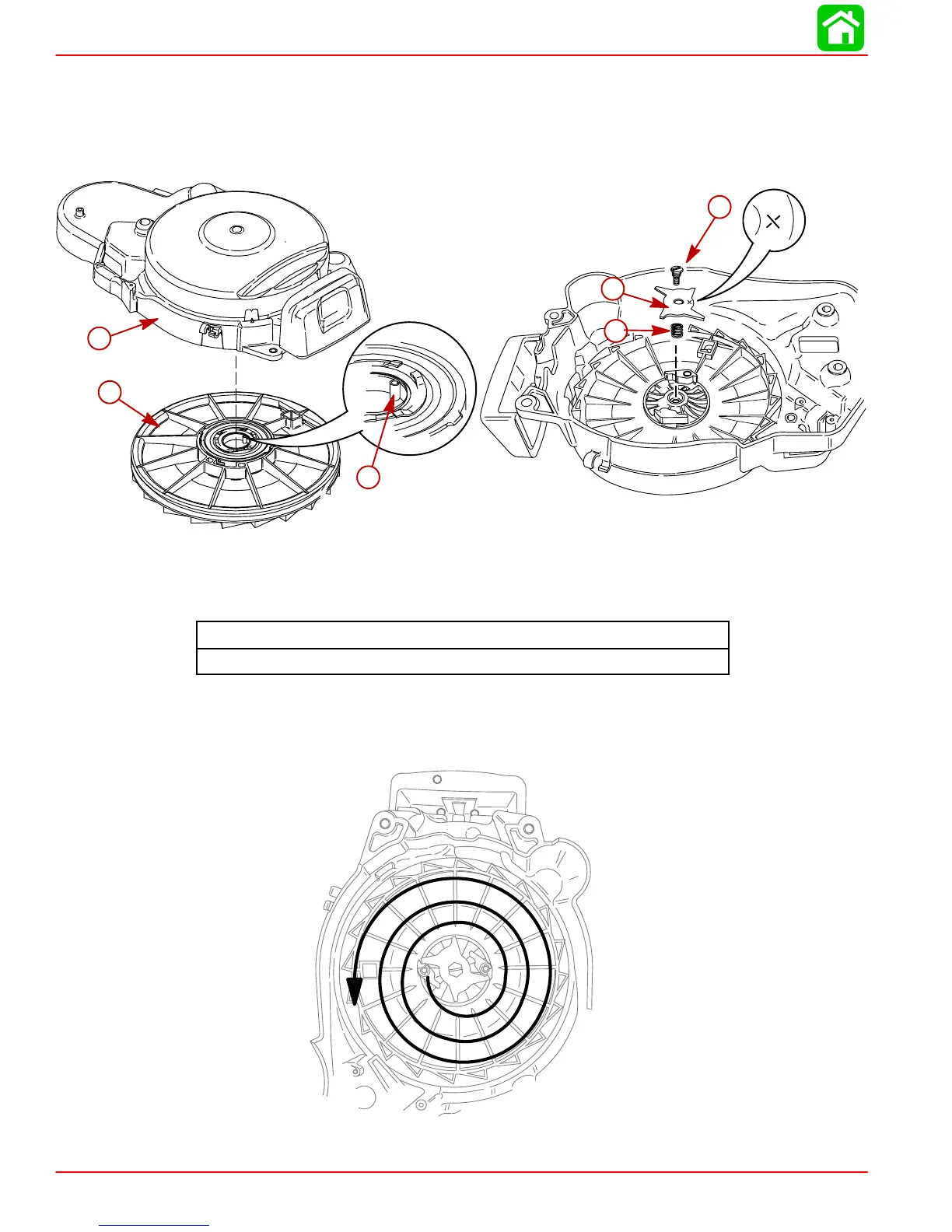

MANUAL STARTER
Page 8-10 90-857046R1 NOVEMBER 2001
3. Install starter sheave assembly into recoil housing.
NOTE: Looped end of spring must engage “V” notch in hub of recoil housing.
4. Secure cam and starter sheave assembly to recoil housing.
NOTE: Cam should be positioned as shown with “x” facing up.
f
a
b
c
d
e
a-Recoil Housing
b-Starter Sheave Assembly
c-Looped End of Spring
d-Spring
e-Cam
f-Screw
Cam Screw Torque
135 lb. in. (15.3 N·m)
Adjusting Rewind Spring Tension
1. Rotate sheave counterclockwise until it stops (coil is bound).
