MANUAL TILT ASSIST
Page 5C-24 90-857046R1 NOVEMBER 2001

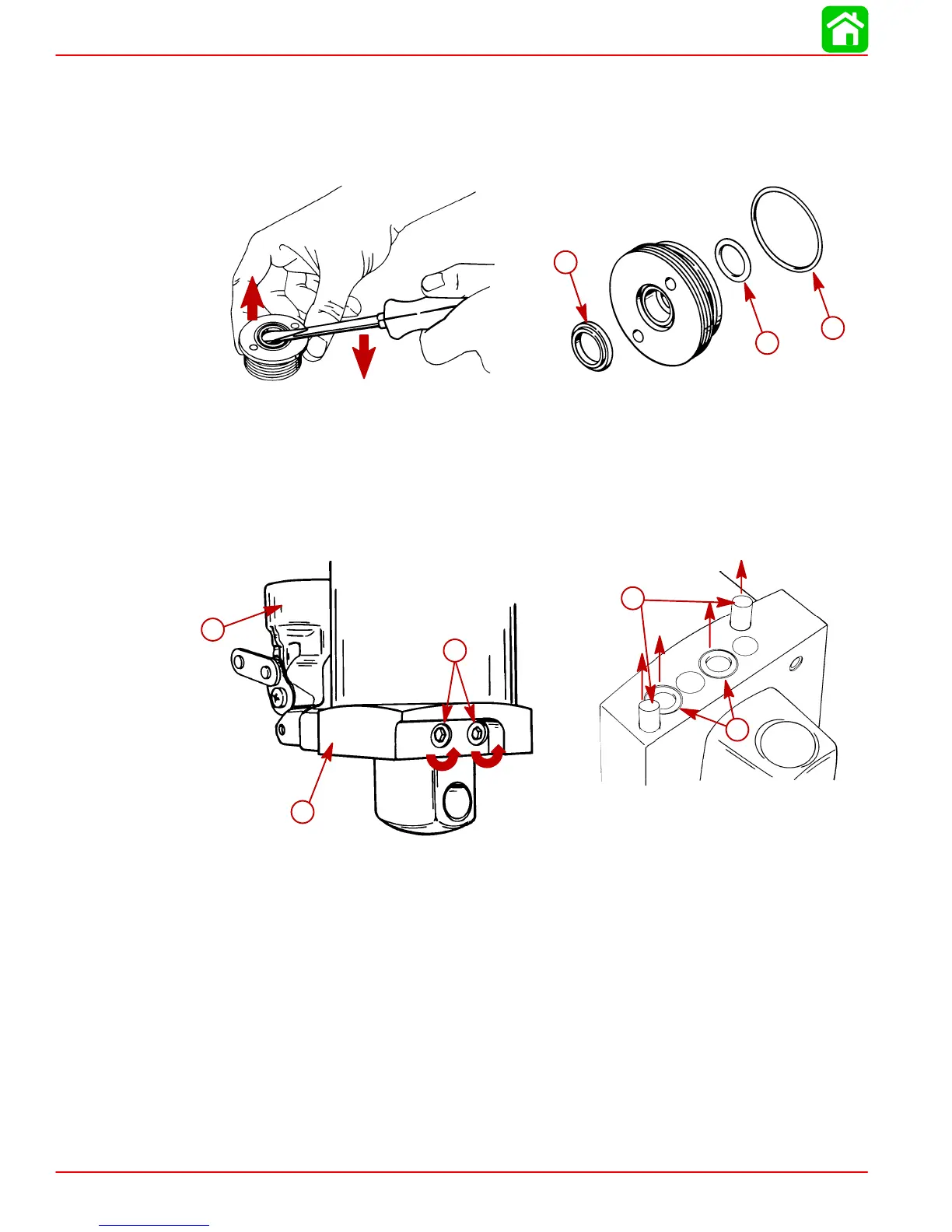

11. Remove cylinder end cap assembly from shock rod.
12. Inspect shock. If wiper (located in cap) has failed to keep rod clean, replace wiper.
13. Place end cap on clean work surface.
14. Remove rod wiper, inner o-ring, and outer o-ring.
51145
51147
c
b
a
a-Rod Wiper
b-Inner O-ring
c-Outer O-ring
Valve Block Removal
1. Remove two screws from the shock rod cylinder to separate the valve block.
2. Remove o-rings and dowel pins.
51148
51146
aa
b
c
a
d
e
a-Screw
b-Valve Block
c-Shock Rod Cylinder
d-O-ring (2)
e-Dowel Pin (2)
