MANUAL STARTER
90-857046R1 NOVEMBER 2001 Page 8-9

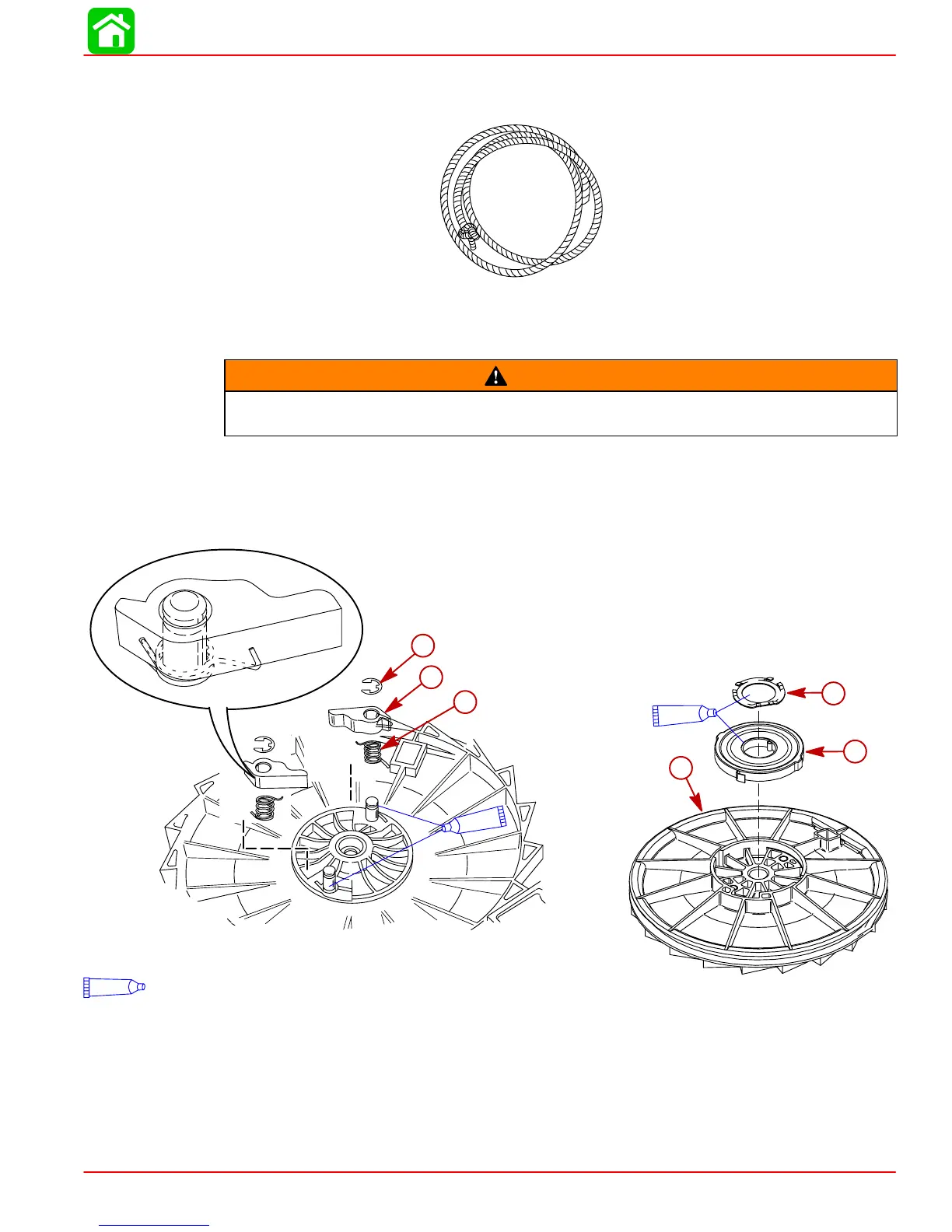

5. Inspect starter rope for wear. Replace as necessary.
NOTE: Rope measures 66 in. (1.68 m) long
Rewind Starter Reassembly
WARNING
When reassembling rewind starter, SAFETY GLASSES must be worn in case rewind
spring uncoils out of the housing.
1. Install springs, pawls, and retaining rings onto starter sheave.
NOTE: Position straight end of spring into recess of starter sheave and angled end of spring
across back of pawl as shown.
2. Install spring assembly and springwasher into starter sheave.
d
e
f
c
b
a
95
2-4-C Marine Lubricant with Teflon
95
95
a-Spring (2)
b-Pawl (2 )
c-Retaining Ring (2)
d-Spring Assembly
e-Springwasher
f-Starter Sheave
