Mercury 40 FourStroke User Manual

MANUAL TILT ASSIST
90-857046R1 NOVEMBER 2001 Page 5C-37
Fluid Filling Procedure - Option Two

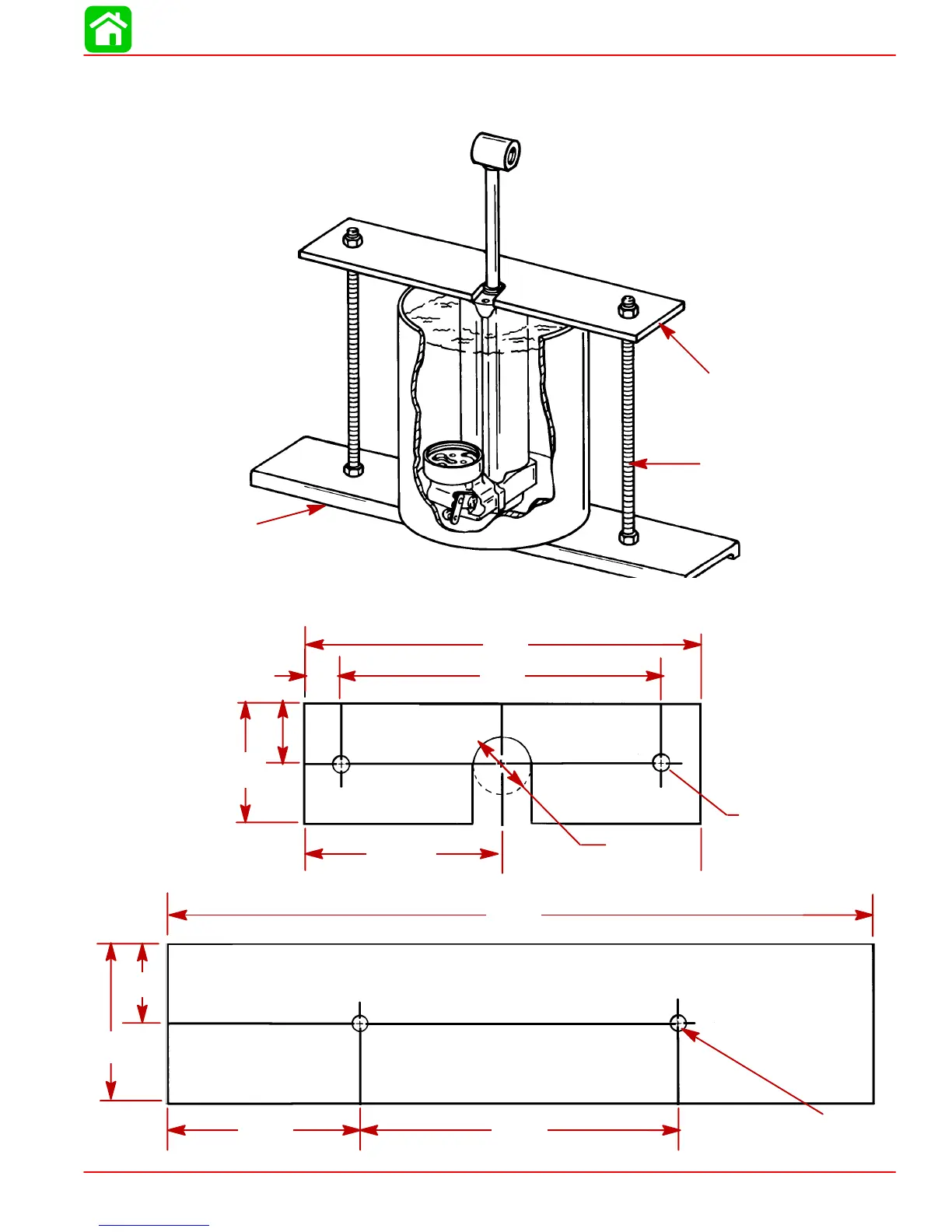

INSTRUCTIONS FOR MAKING RETAINING TOOL
2 holes, 7/16 in. dia.
(11 mm)
3/8 in. x 13 in.
(10 mm x 33 cm)
Threaded Rod
3/16 in. x 3 in.
(5 x 7.5 cm)
Steel Plate
4in. x 1/4 in. min.
(10cm x 6.4 mm) minimum
Channel Iron
10 in.
(25 cm)
8 in.
(20 cm)
1 in.
(25mm)
3 in.
(76mm)
5 in.
(125mm)
1 1/4 in. dia.
(30m)
20 in.
(508mm)
8 in.
(203mm)
6 in.
(152mm)
4 in.
(100 mm)
2 in.
(50mm)
3/8 in. dia. 2 holes
