IGNITION
90-857046R1 NOVEMBER 2001 Page 2A-27
Installation
Timing Belt Installation Notes:
•
Protect the timing belt from water and oil.
•
Use care not to scratch the belt.
•
Do not use any metal device to help stretch the belt onto the driven gear.

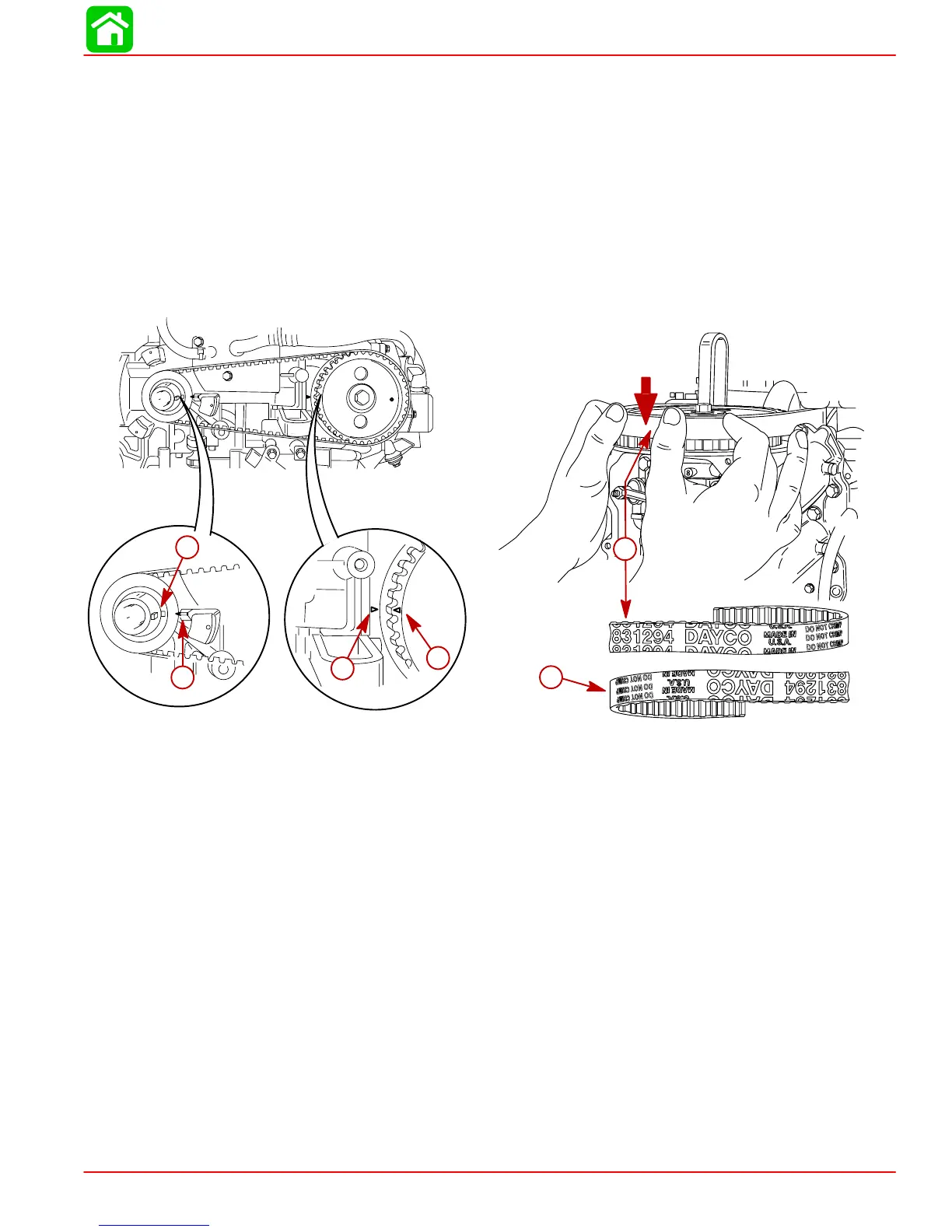

1. Align marks on drive and driven gear with marks on cylinder block as shown.
2. Install timing belt onto drive gear as shown. Numbers/letters on belt should be readable
once belt is installed.
3. Install stator and flywheel as outlined previously in this section.
1
a
b
c
c
d
e
a-Drive Gear Mark
b-Driven Gear Mark
c-Cylinder Block Marks
d-Timing Belt Installed Correctly
e-Timing Belt Installed Incorrectly
