CHARGING & STARTING SYSTEM
Page 2B-8 90-857046R1 NOVEMBER 2001

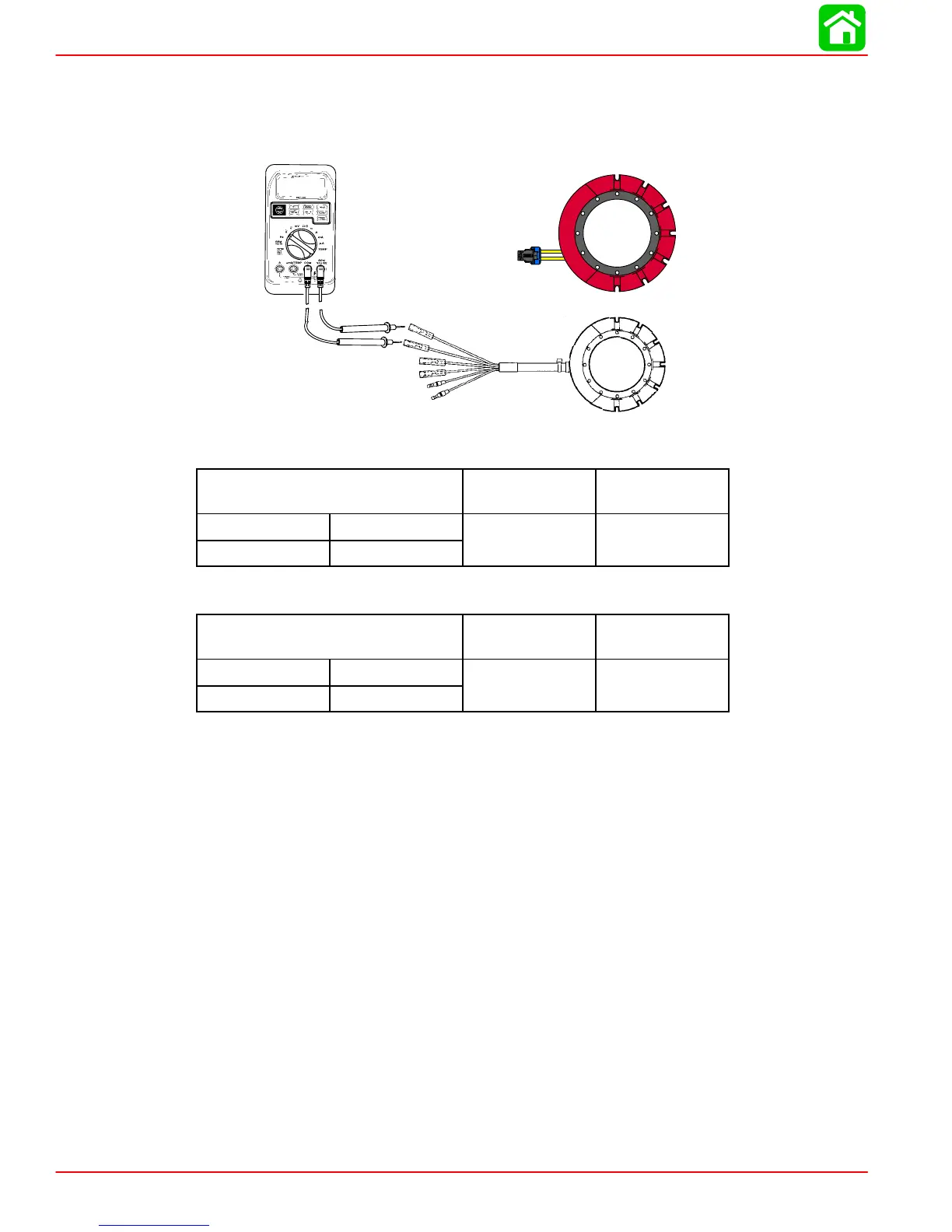

Stator Ohms Test
STATOR (BATTERY CHARGE COIL)
6 Amp. Stator
METER TEST LEADS
METER
SCALE
READING
(
RED BLACK
RX1
09 11
YEL YEL
RX1 0.9 - 1.1
15 Amp. Stator
METER TEST LEADS
METER
SCALE
READING
(
RED BLACK
RX1
022 024
YEL YEL
RX1 0.22 - 0.24
