CYLINDER HEAD
90-857046R1 NOVEMBER 2001 Page 4A-41

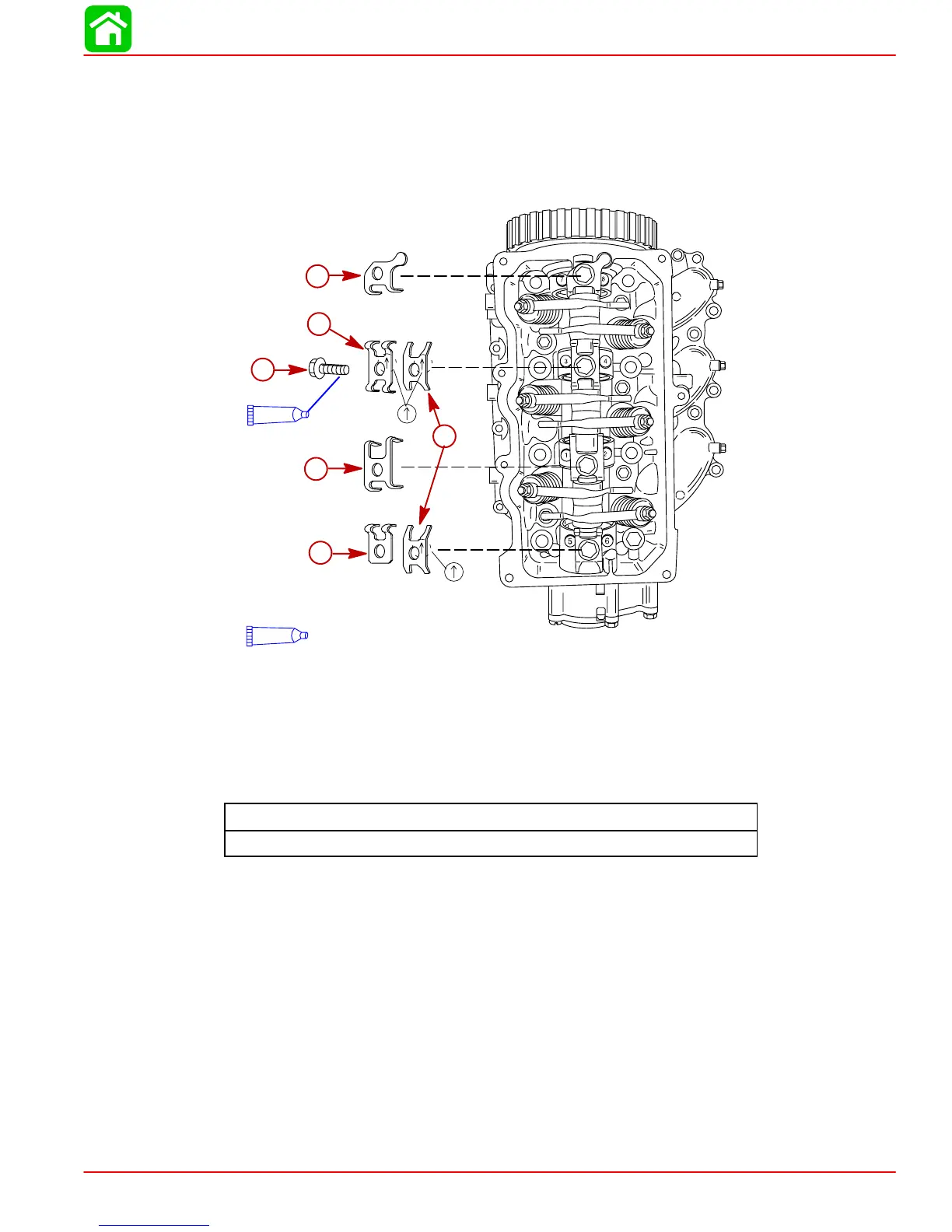

Rocker Arm Shaft Installation
1. Install the rocker arm shaft assembly as shown.
2. Install rocker arm retainers on rocker shaft as shown. Tighten screws to the specified
torque.
NOTE: Leave all adjustment screws loose at this time.
a
110
4-Stroke Outboard Oil
110
58987
b
d
c
e
f
a-Mounting Screw (4)-M8 x 30
b-Rocker Arm Bracket (1)
c-Rocker Arm Spring - Overload (2) Arrow Must Point Toward Driven Gear
d-Rocker Arm Spring (1)
e-Rocker Arm Bracket (1)
f-Rocker Arm Spring (1) Arrow Must Point Toward Driven Gear
Rocker Arm Shaft Mounting Screw Torque
160 lb. in. (18 N·m)
To Next Page
