OUTBOARD MOTOR INSTALLATION
90-857046R1 NOVEMBER 2001 Page 1D-9
Shift and Throttle Cable
Installation
Install cables into the remote control following the instructions provided with the remote con-
trol.
NOTE: Install the shift cable to the engine first. The shift cable is the first cable to move when
the remote control handle is moved out of neutral.

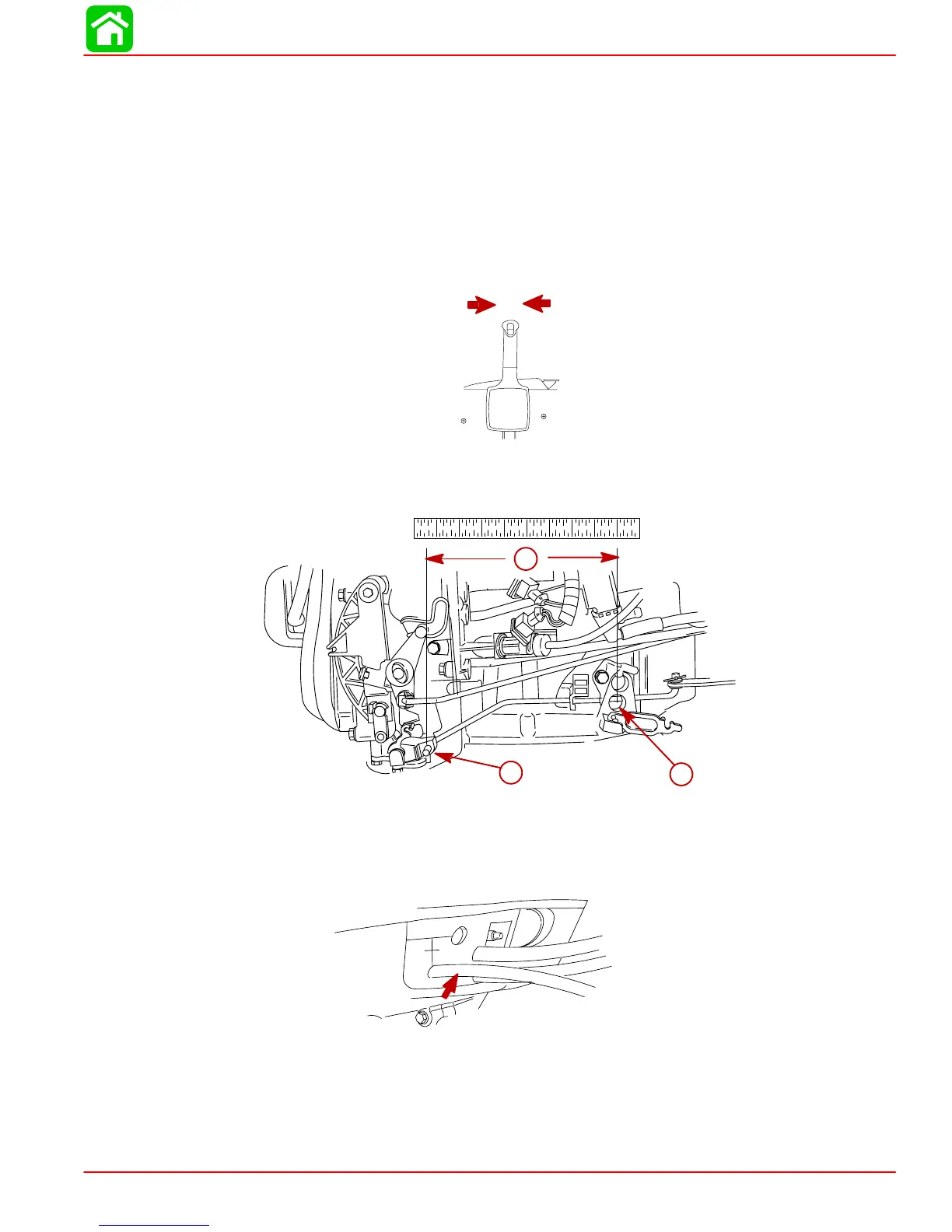

Shift Cable Installation
1. Position remote control into neutral.
N
2. Shift outboard into neutral.
3. Measure the distance (a) between pin and center of lower hole.
a
b
c
a-Distance Between Pin And Center of Lower Hole
b-Pin
c-Lower Hole
4. Fit shift cable through rubber grommet.
