WIRING DIAGRAMS
Page 2D-6 90-857046R1 NOVEMBER 2001

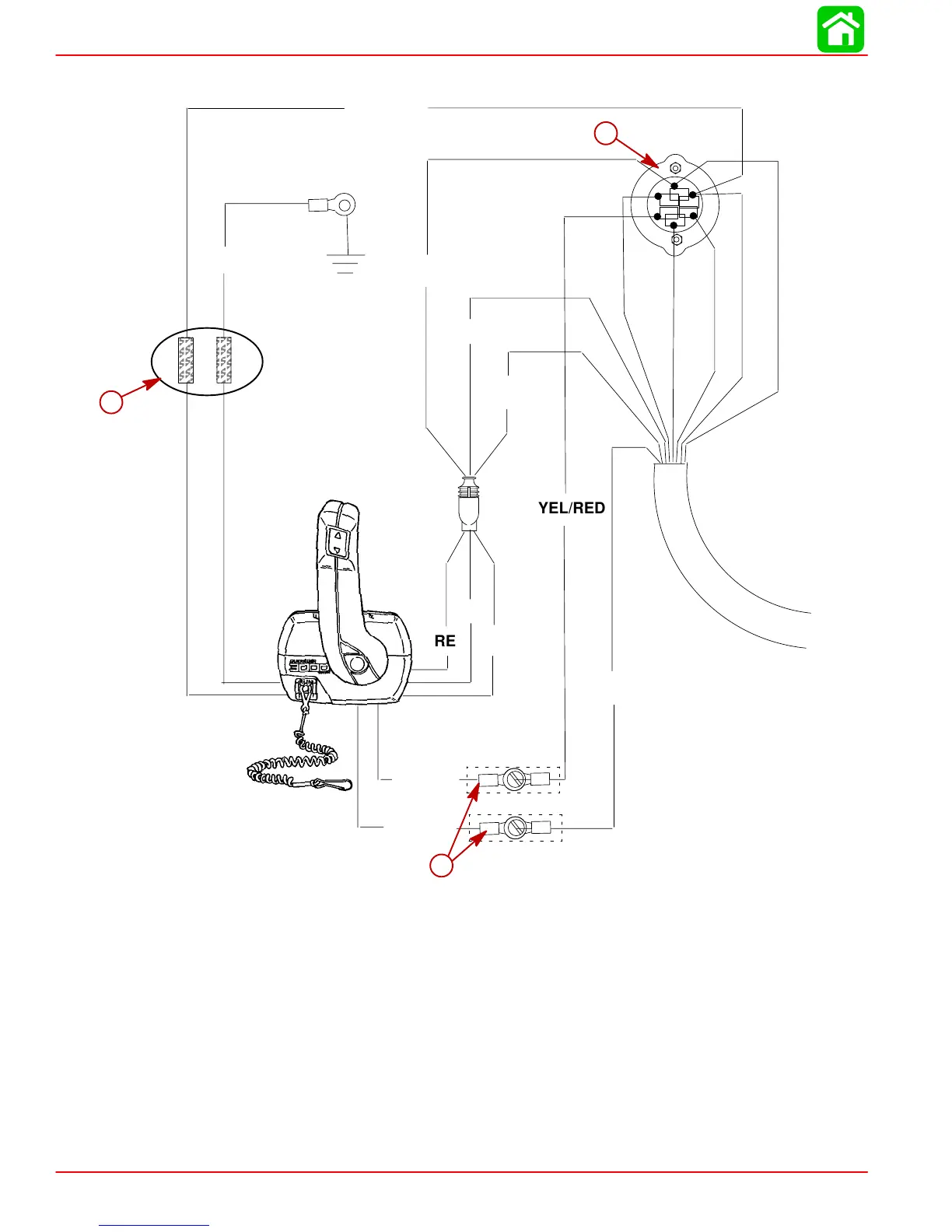

Commander 3000 Panel Mount Control
B
A
C
S
M
M
ÂÂ
ÂÂ
ÂÂ
Â
Â
Â
YEL/RED
RED
YEL/RED
YEL/RED
YEL/RED
PUR
GRN
BLU/WHT
GRN/WHT
RED
BLK/YEL
BLK
BLK=BLACK
BLU=BLUE
BRN=BROWN
GRN=GREEN
GRY=GRAY
PUR=PURPLE
RED=RED
TAN=TAN
WHT=WHITE
YEL=YELLOW
a
b
c
a-Lanyard stop switch leads must be soldered and covered with shrink tube for a water proof connection.
If alternate method of connection is made, (use of electrical butt connector) verify connection is secure
and sealed for moisture proof connection.
b-Connect wires together with screw and hex nut (2 places); apply Liquid Neoprene to connections and
slide heat shrink tubing over each connection.
c-Keyswitch
