TILLER HANDLE
Page 7B-6 90-857046R1 NOVEMBER 2001
Tiller Handle Disassembly

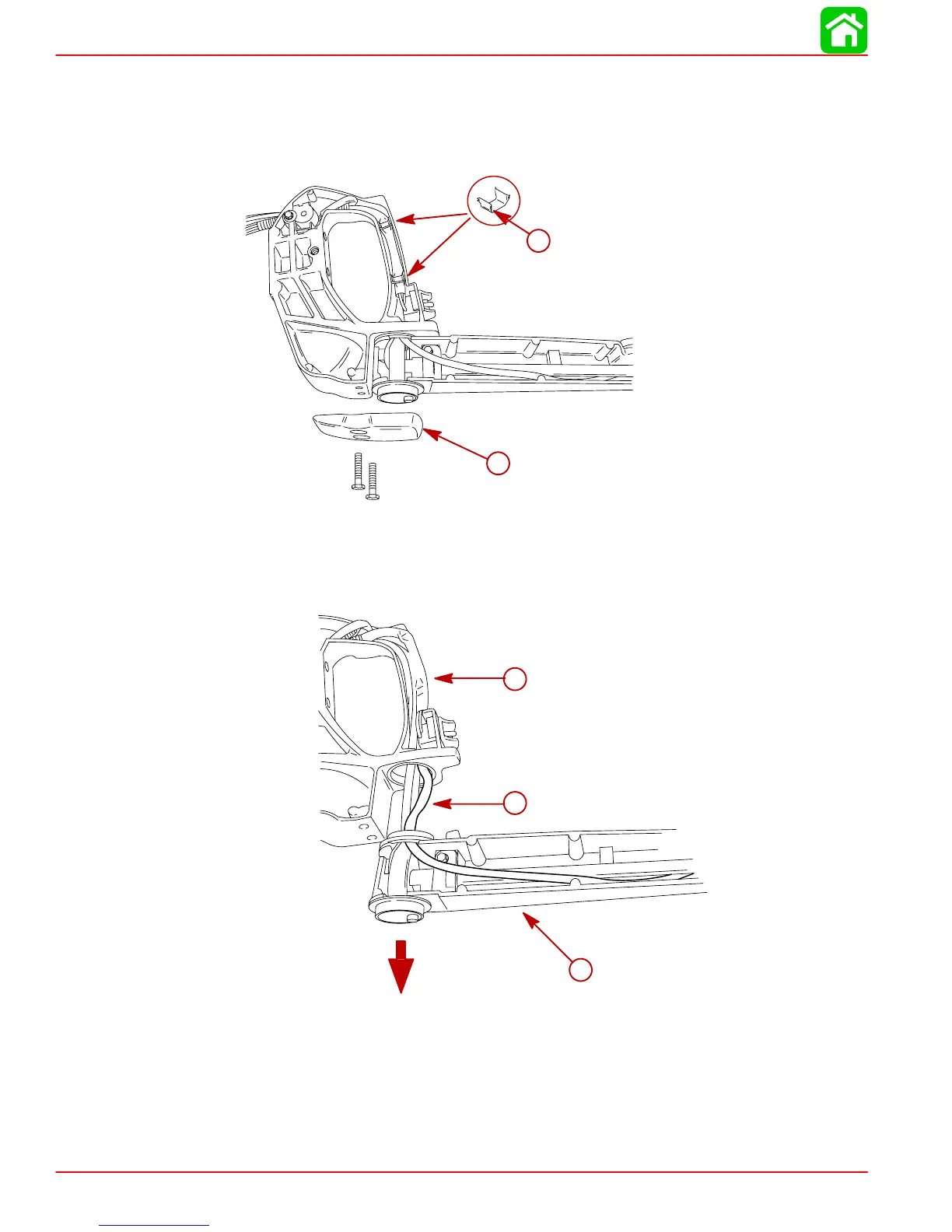

1. Pry the two clips out of the hand grip.
2. Remove the side cover.
a
b
a-Clips (2)
b-Side Cover
3. Pull the tiller arm, along with the throttle cables and wiring, from the tiller bracket.
a
b
c
a-Tiller Arm
b-Throttle Cables/Wiring
c-Tiller Bracket
