TILLER HANDLE
90-857046R1 NOVEMBER 2001 Page 7B-5

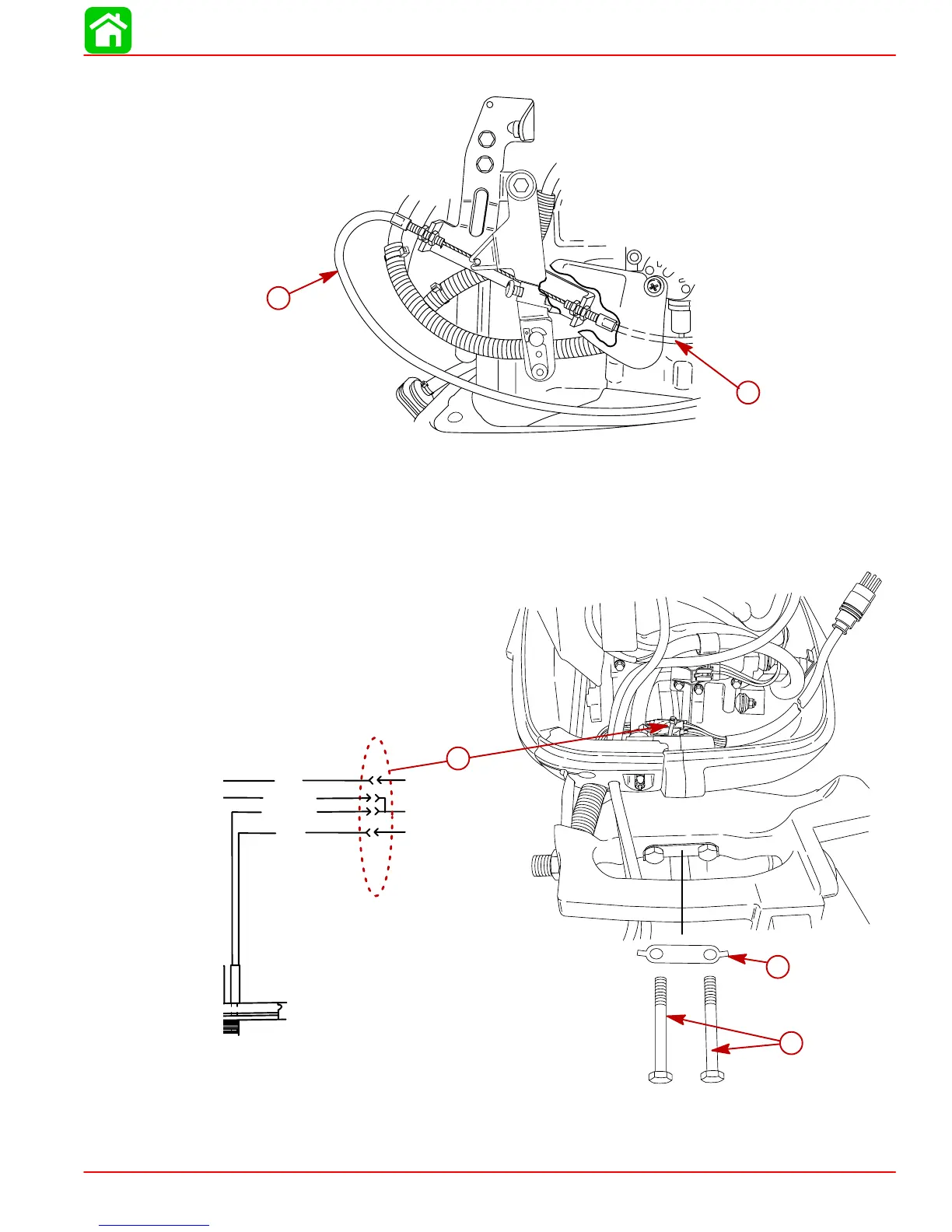

3. Loosen the jam nuts and disconnect the throttle cables from the throttle lever.
a
b
a-Throttle Cable (Long)
b-Throttle Cable (Short)
4. Disconnect the tiller handle wiring.
5. Remove two screws securing the tiller handle. Remove the tiller handle assembly from
the outboard.
54272
b
c
a
BLK/YEL
BLK
BLK
BLK/YEL
BLK/YEL
BLK
BLK
a-Disconnect Tiller Handle Wires
b-Screws-M10x90 (2)
c-Tab Washer
