WIRING DIAGRAMS
90-857046R1 NOVEMBER 2001 Page 2D-7

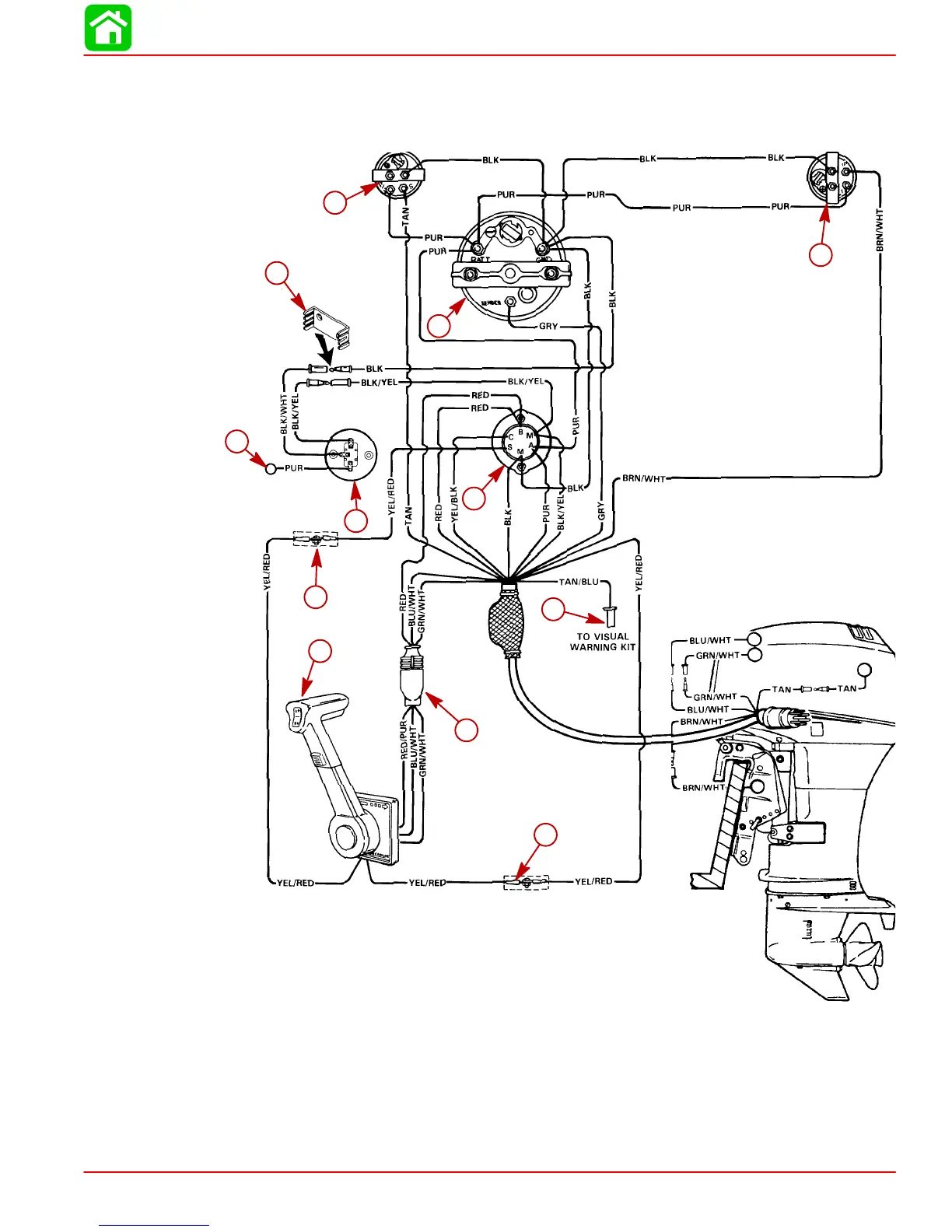

Instrument/Lanyard Stop Switch Wiring Diagram
IMPORTANT: On installations where gauge options will not be used, tape back any unused wiring
harness leads.
52715
BLK = Black
BLU = Blue
BRN = Brown
GRY = Gray
GRN = Green
ORN = Orange
PNK = Pink
PUR = Purple
RED = Red
TAN = Tan
WHT = White
YEL = Yellow
LIT = Light
DRK = Dark
c
g
d
f
a
b
j
h
i
j
k
e
a-Ignition/Choke Switch
b-Lanyard Stop Switch
c-Lead Not Used On Outboard Installations
d-Retainer
e-Tachometer
f-Trim Indicator Gauge (Optional)
g-Temperature Gauge
h-Remote Control
i-Power Trim Harness Connector
j-Connect Wires Together with Screw and Hex
Nut (2 Places); Apply Liquid Neoprene to Con-
nections and Slide Rubber Sleeve over Each
Connection
k-Lead to Optional Visual Warning Kit
