WIRING DIAGRAMS
Page 2D-8 90-857046R1 NOVEMBER 2001

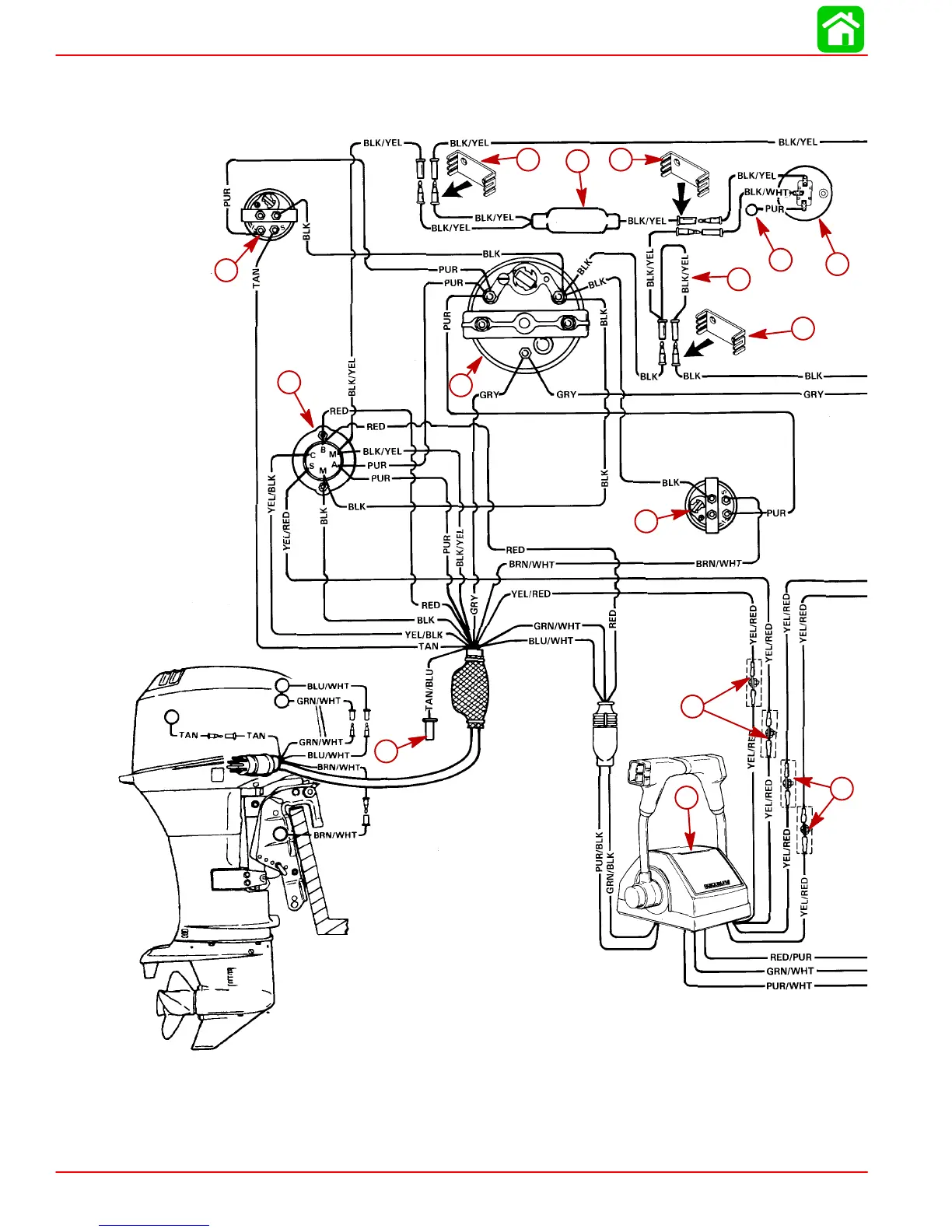

Instrument/Lanyard Stop Switch Wiring Diagram (Dual
Outboard)
BATT
GND
SENDER
PORT INSTALLATION
52716
BLK = Black
BLU = Blue
BRN = Brown
GRY = Gray
GRN = Green
ORN = Orange
PNK = Pink
PUR = Purple
RED = Red
TAN = Tan
WHT = White
YEL = Yellow
LIT = Light
DRK = Dark
g
d
k
d
l
c
b
d
f
e
a
o
h
n
n
a-Ignition/Choke Switch
b-Lanyard Stop Switch
c-Lead Not Used on Outboard Installations
d-Retainer
e-Tachometer
f-Trim Indicator Gauge
g-Temperature Gauge
h-Remote Control
i-Synchronizer Gauge
j-Synchronizer Box
