BIGFOOT GEAR HOUSING
Page 6B-40 90-857046R1 NOVEMBER 2001

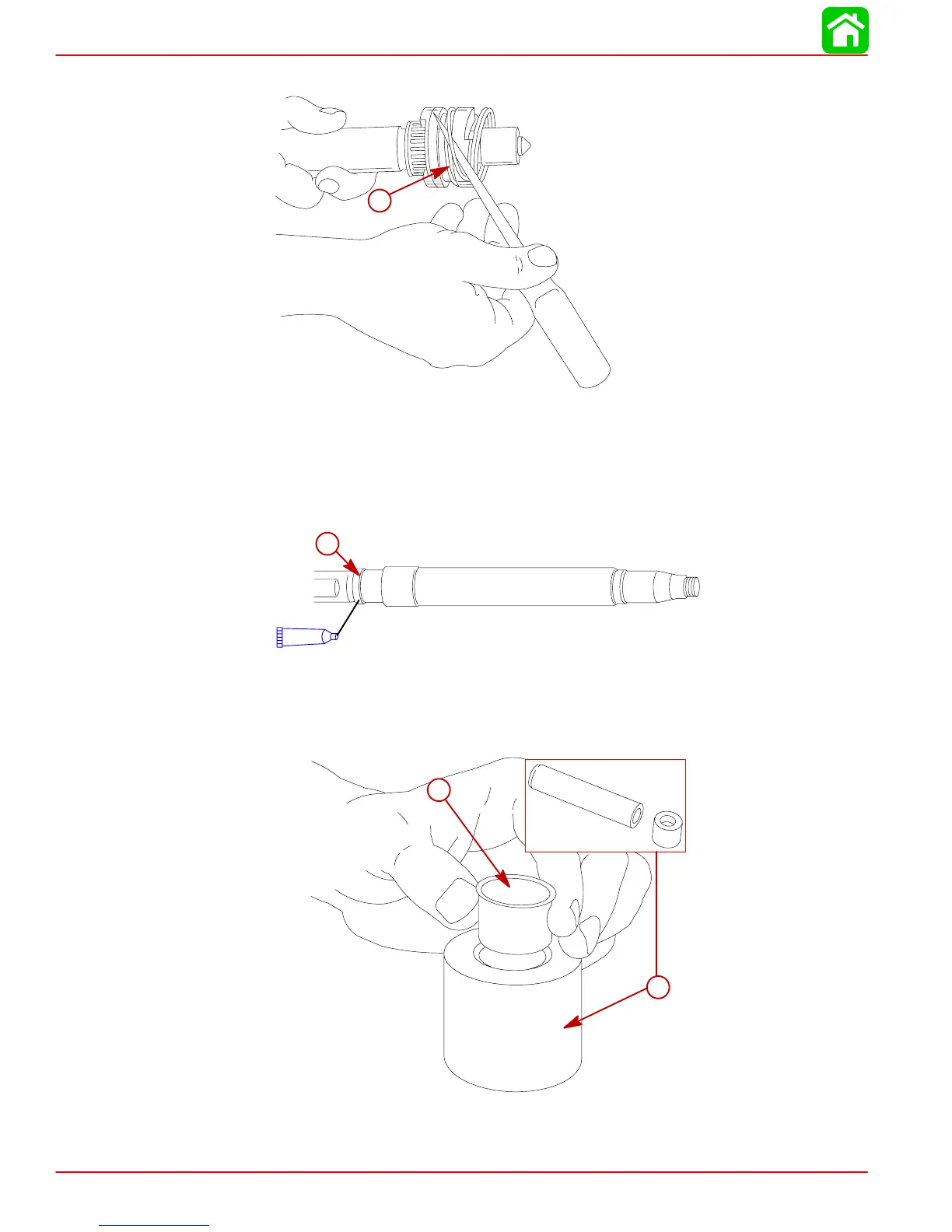

3. Install spring. DO NOT allow spring coils to overlap each other.
51876
a
a- Spring
Drive Shaft Wear Sleeve Installation
1. Install new rubber ring.
2. Apply a light coat of Loctite 271 on outside diameter of rubber ring.
19152
a
7
Loctite “271”
a- Ring
3. Insert sleeve into holder*.
*Component of Wear Sleeve Installation Tool (91-14310A1).
19169
a
91-14310A1
b
a- Sleeve
b- Holder
