OUTBOARD MOTOR INSTALLATION
90-857046R1 NOVEMBER 2001 Page 1D-7
Wiring Harness
IMPORTANT: Warning Horn Requirement – The remote control or key switch assem-
bly must be wired with a warning horn. This warning horn is used with the engine
warning system.

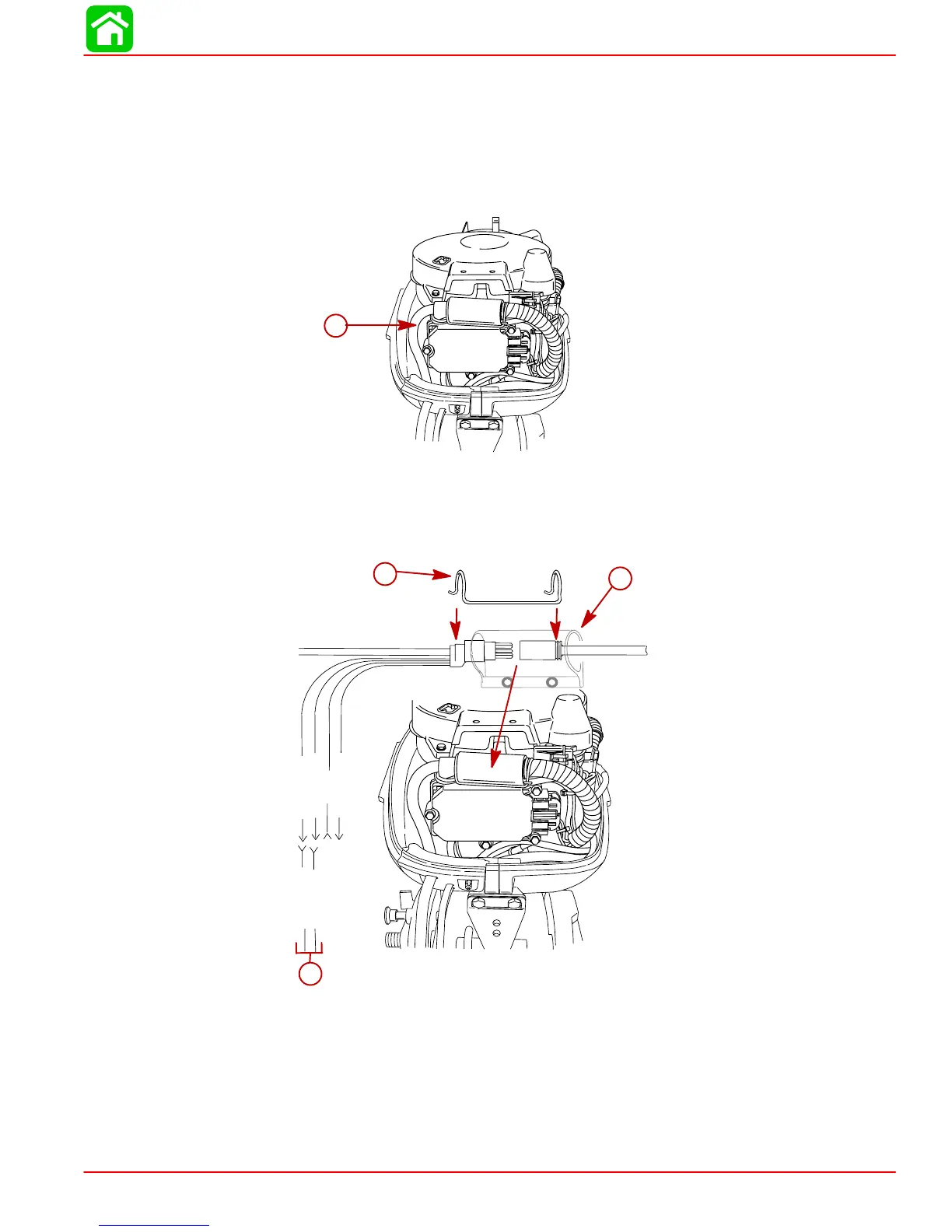

1. Route wiring harness into bottom cowl.
a
a-Wiring Harness
2. Connect wiring. Push the wiring harness connectors together inside the rubber sleeve.
Push the retainer over the exposed ends of the connectors. This will hold the connectors
together.
BLU/WHT
GRN/WHT
BRN/WHT
BLU/WHT
GRN/WHT
TAN
c
b
a
a-Power Trim Connections
b-Rubber Sleeve – Place Harness Connectors Inside
c-Retainer – Push Over Connector Ends
To Next Page
