MANUAL TILT ASSIST
Page 5C-40 90-857046R1 NOVEMBER 2001

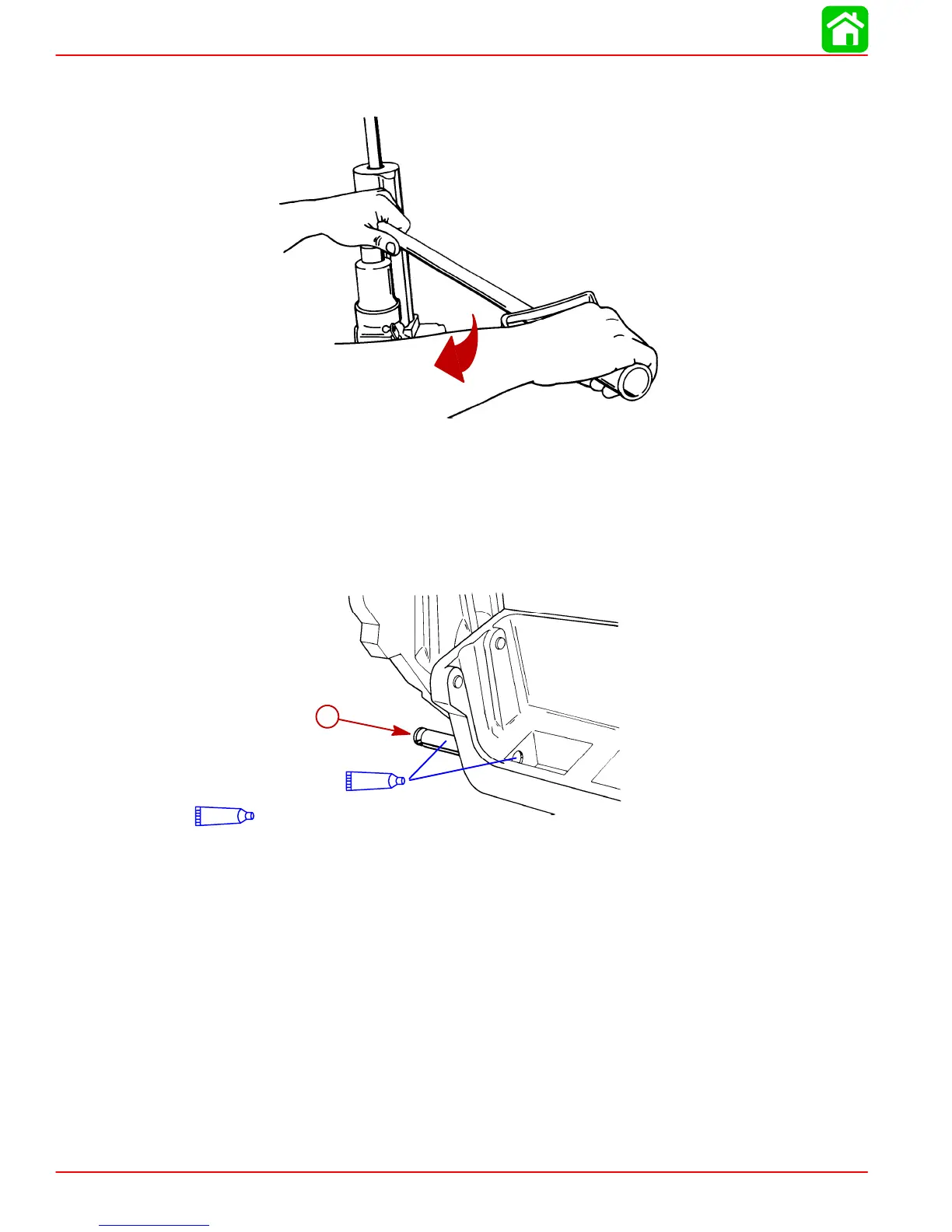

11. With cam lever remaining open (facing down), remove tilt assembly from oil and secure
in soft jawed vise. Torque accumulator to 35 lb-ft (47 Nm).
50433
Manual Tilt System Installation
1. Lubricate lower pivot pin mounting holes with 2-4-C Marine Lubricant with Teflon.
2. Apply 2-4-C Marine Lubricant with Teflon to lower pivot pin and start lower pivot pin into
pivot pin bore.
51148
a
95
2-4-C Marine Lubricant with Teflon
95
a-Lower Pivot Pin
To Next Page
