MANUAL TILT ASSIST
90-857046R1 NOVEMBER 2001 Page 5C-41

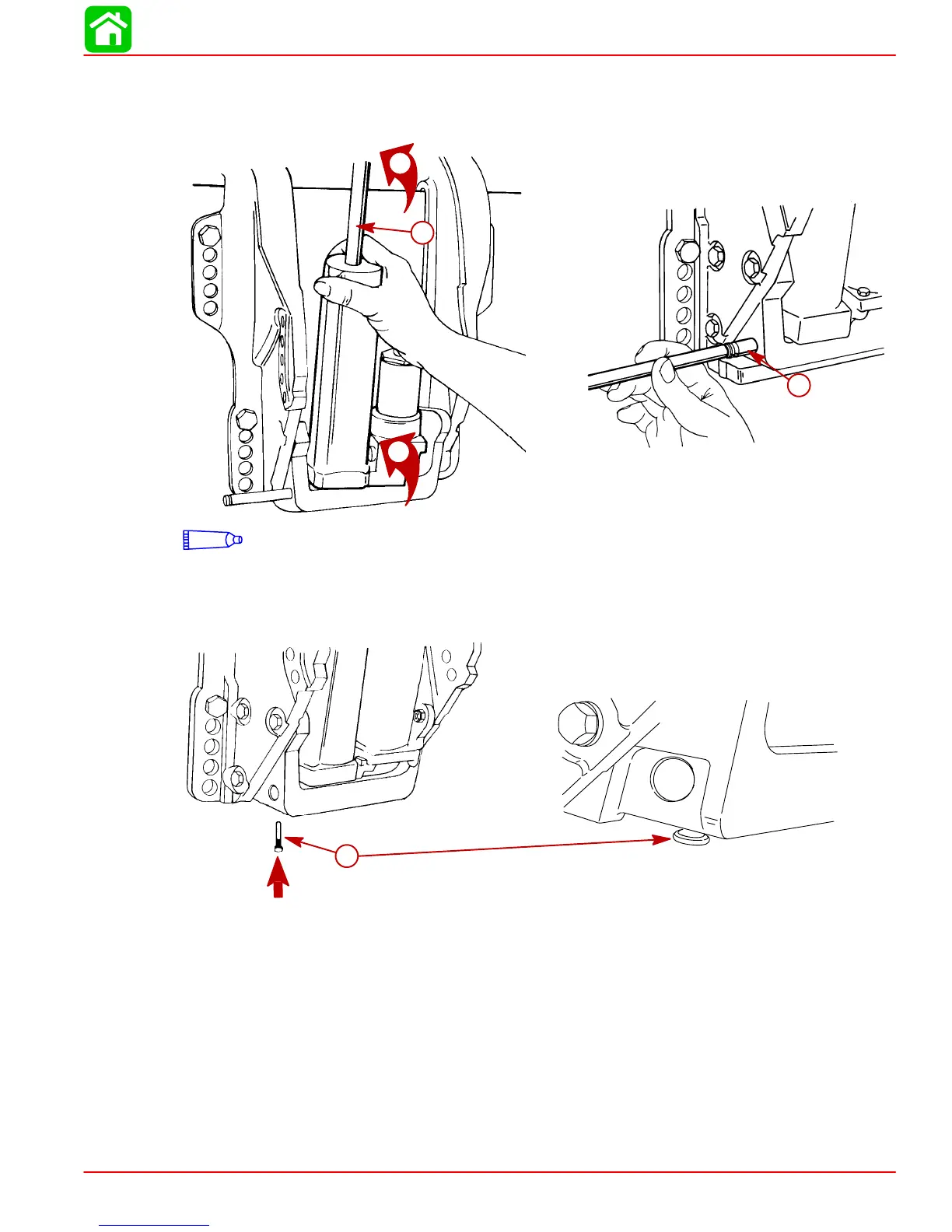

3. Reinstall manual tilt system, bottom first. Reconnect release valve link rod.
4. Using a suitable punch, drive lower pivot pin into clamp bracket and trim cylinder assem-
bly until pivot pin is flush with outside surface.
95
2-4-C Marine Lubricant with Teflon
51144
2
1
51147
a
b
a-Lower Pivot Pin
b-Manual Tilt System
5. Using a suitable punch, drive lower trilobe pin into its hole until seated.
a
a-Trilobe Pin
