POWER TRIM
Page 5B-48 90-857046R1 NOVEMBER 2001
Reservoir/Motor Installation

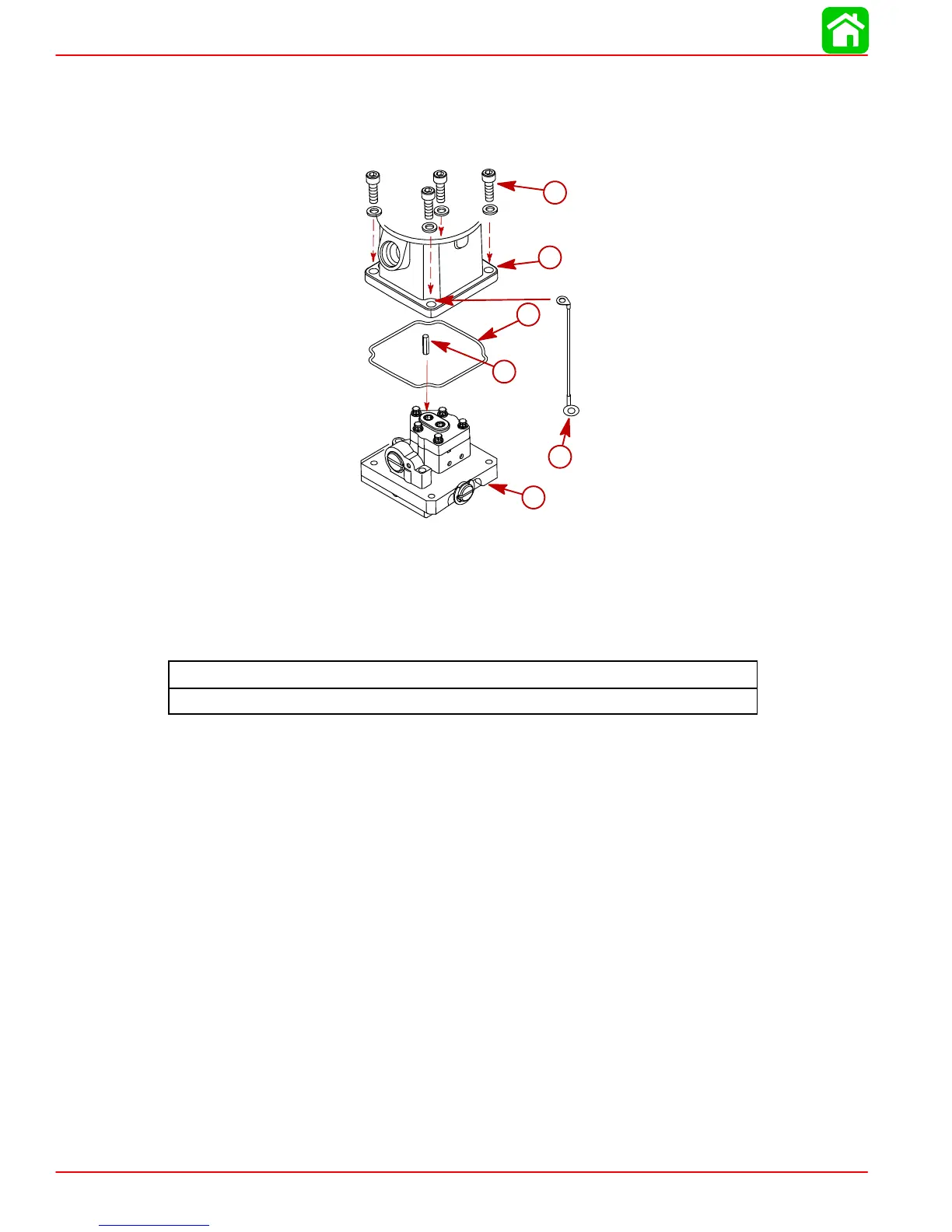

1. Install coupler into top of pump. Make sure reservoir seal is in the reservoir groove and
place reservoir onto pump/manifold assembly. Install ground strap under screw shown
Tighten screws to specified torque.
a
b
c
d
f
e
a-Screw (4) Torque to 80 lb-in. (9 Nm)
b-Reservoir
c-Reservoir Seal
d-Coupler
e-Manifold Assembly
f-Ground Strap
Screw Torque
80 lb-in (9.0 Nm)
