Mercury 40 FourStroke - Carburetor Disassembly

CARBURETOR
90-857046R1 NOVEMBER 2001 Page 3B-17

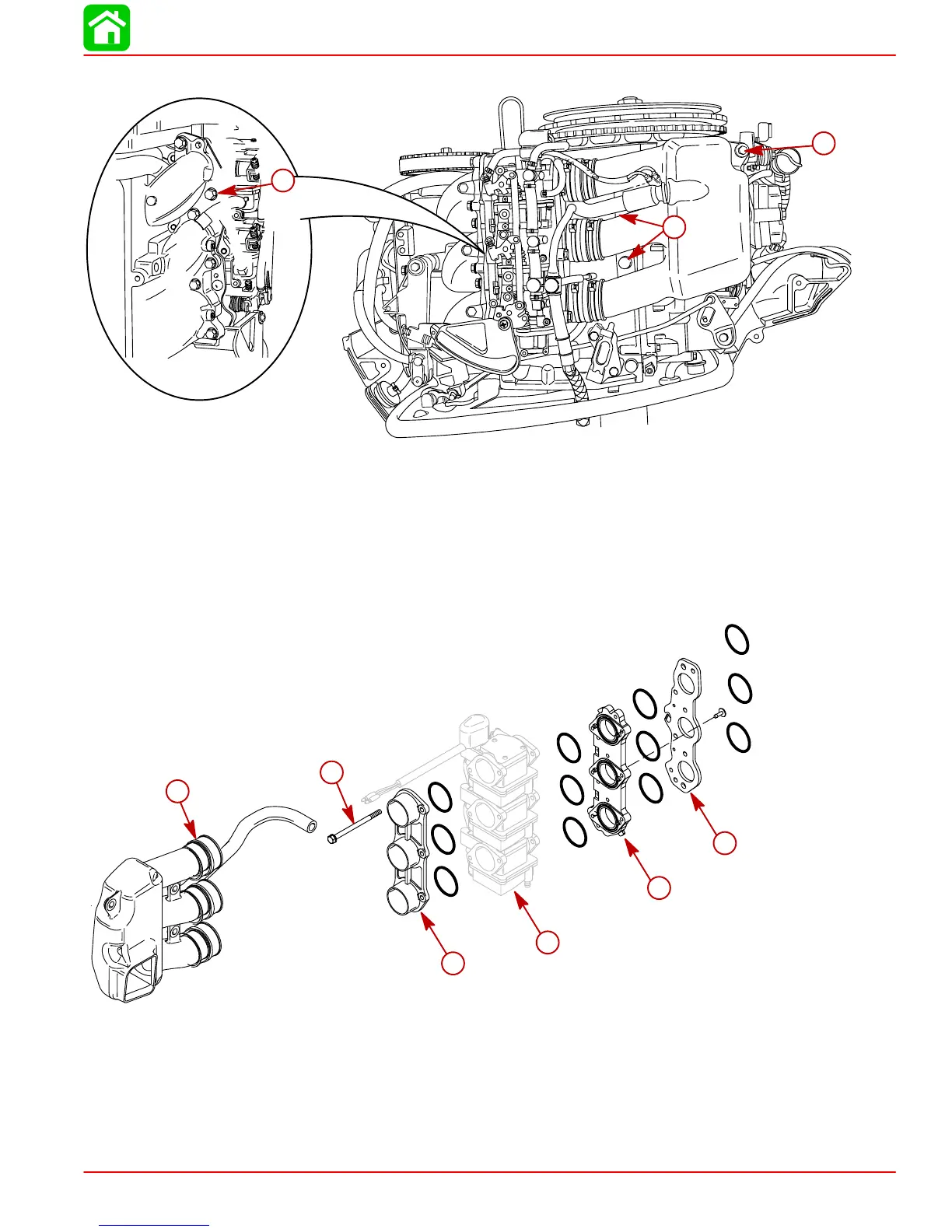

2. Remove intake and carburetor mounting screws.
b
a
a
a-Intake Mounting Screw (3)-M6x20
b-Carburetor Mounting Screw (6)
Carburetor Disassembly
Carburetors Not Equipped With Bowl Vent Hoses
1. Remove sound attenuator, air intake and plate from carburetor assembly.
a
b
c
d
e
f
a-Sound Attenuator
b-Screw (6)
c-Air Intake
d-Carburetor Assembly
e-Plate
f-Isolator
