CARBURETOR
90-857046R1 NOVEMBER 2001 Page 3B-25
Carburetor Reassembly

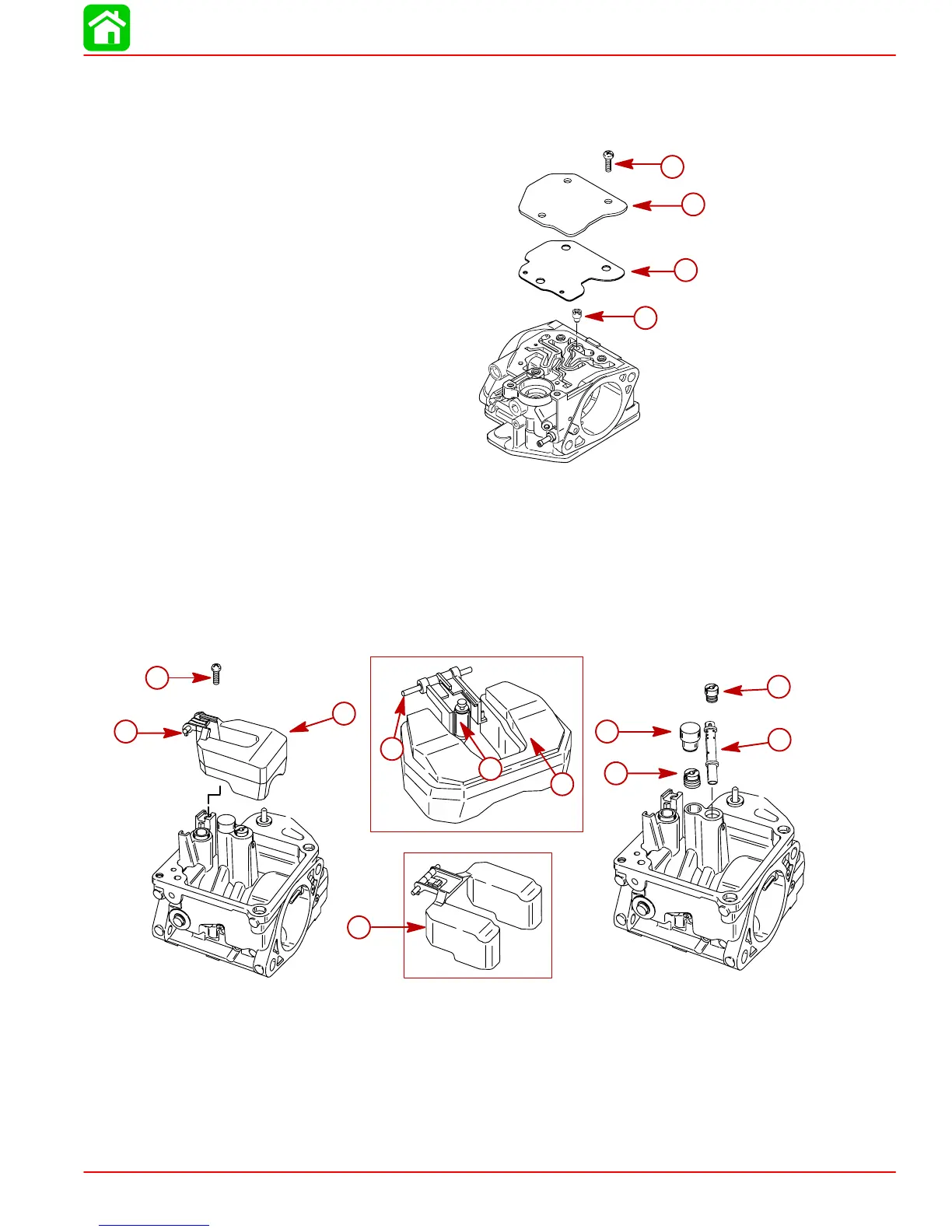

1. Install idle jet (if equipped), gasket, and cover.
a
b
c
d
a-Screws (3)
b-Cover
c-Gasket
d-Idle jet
2. Install jets, nozzles, plug and float.
NOTE: Earlier models are likely equipped with the old style float..
a
b
c
c
b
d
e
f
g
h
i
a-Screw
b-Float Pin
c-Old Style Float
d-New Style Float
e-Needle Valve
f-Plug
g-Slow Jet
h-Main Jet
i-Main Nozzle
