Mercury 40 FourStroke - Oil Sleeve Installation

BIGFOOT GEAR HOUSING
90-857046R1 NOVEMBER 2001 Page 6B-43
Oil Sleeve Installation

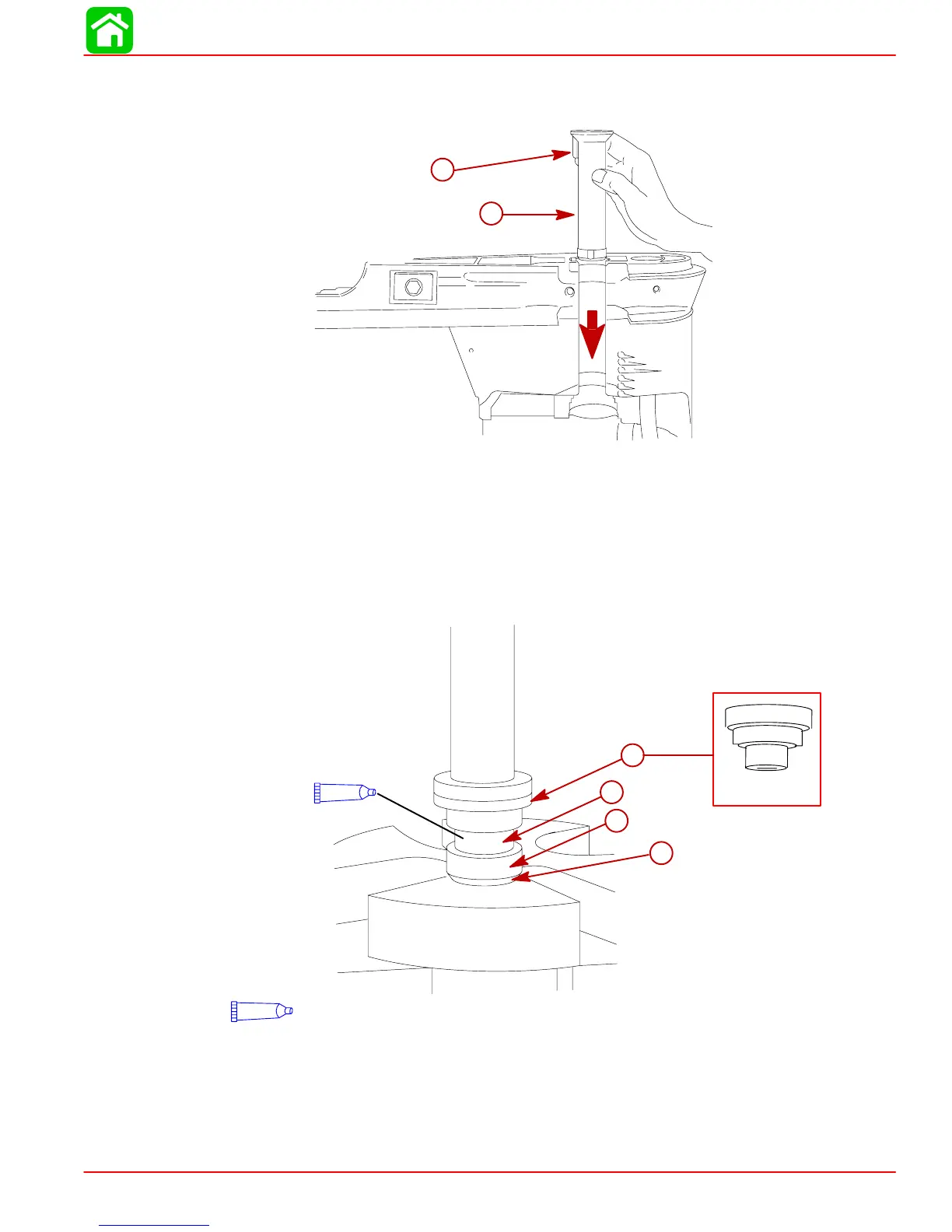

1. Install oil sleeve with tab positioned as shown.
53934
a
b
a- Oil Sleeve
b- Tab
Drive Shaft Upper Bearing Installation
1. Lubricate I.D. of bearing sleeve and O.D. of bearing with 2-4-C Marine Lubricant with
Teflon.
2. Press bearing into sleeve using mandrel from bearing installation tool (91-14309A1).
19164
a
b
c
d
95
2-4-C Marine Lubricant with Teflon
91-13781
95
a- Bearing Sleeve
b- Tapered End
c- Bearing; Numbered Side Toward Mandrel
d- Mandrel* (91-13781)
*From Bearing Installation Tool (91-14309A1)
