BIGFOOT GEAR HOUSING
Page 6B-42 90-857046R1 NOVEMBER 2001

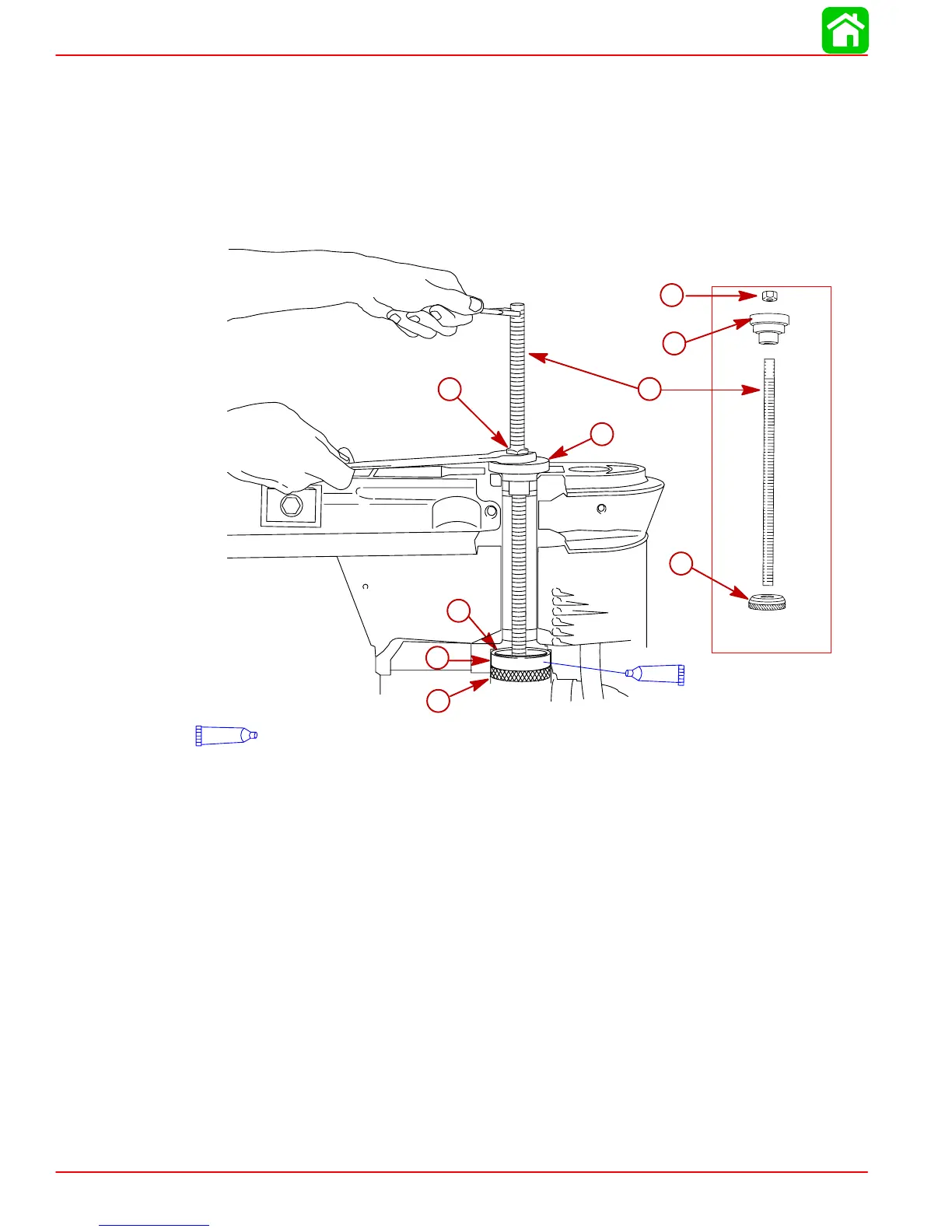

Drive Shaft Lower Bearing Race Installation
1. Lubricate O.D. of bearing race with 2-4-C Marine Lubricant with Teflon.
2. Install shim(s) and bearing race into housing. If shim(s) were lost or a new gear housing
is being assembled, start with 0.025 in. (0.635 mm) shim(s).
NOTE: Verify shim(s) are not cocked when drawing up race. Once shims and bearing cup
are in place, position gearcase assembly so the driveshaft is vertical. This will aid in prevent-
ing the bearing cup from becoming cocked in the bore.
a
b
c
d
f
95
2-4-C Marine Lubricant with Teflon
95
91-14309A1
f
d
c
e
58207
a- Shim(s) (Retained From Disassembly)
b- Bearing Race
c- Mandrel* (13780)
d- Mandrel* (13781)
e- Threaded Rod** (91-31229)
f- Nut** (11-24156)
*From Bearing Installation Tool (91-14309A1)
**From Bearing Removal and Installation Kit (91-31229A7)
