Mercury 40 FourStroke - Voltage Regulator Removal;Installation

IGNITION
Page 2A-30 90-857046R1 NOVEMBER 2001
Voltage Regulator Removal and Installation
1. Remove bundled wire connectors from j-clip (s/n OG960499 and below).
2. Remove cable tie (s/n OG960499 and below).
3. Disconnect voltage regulator wires.
4. Remove mounting screws and ground wires.
5. Reverse steps for installation (refer to wiring diagram section 2D for correct wire con-
nections).

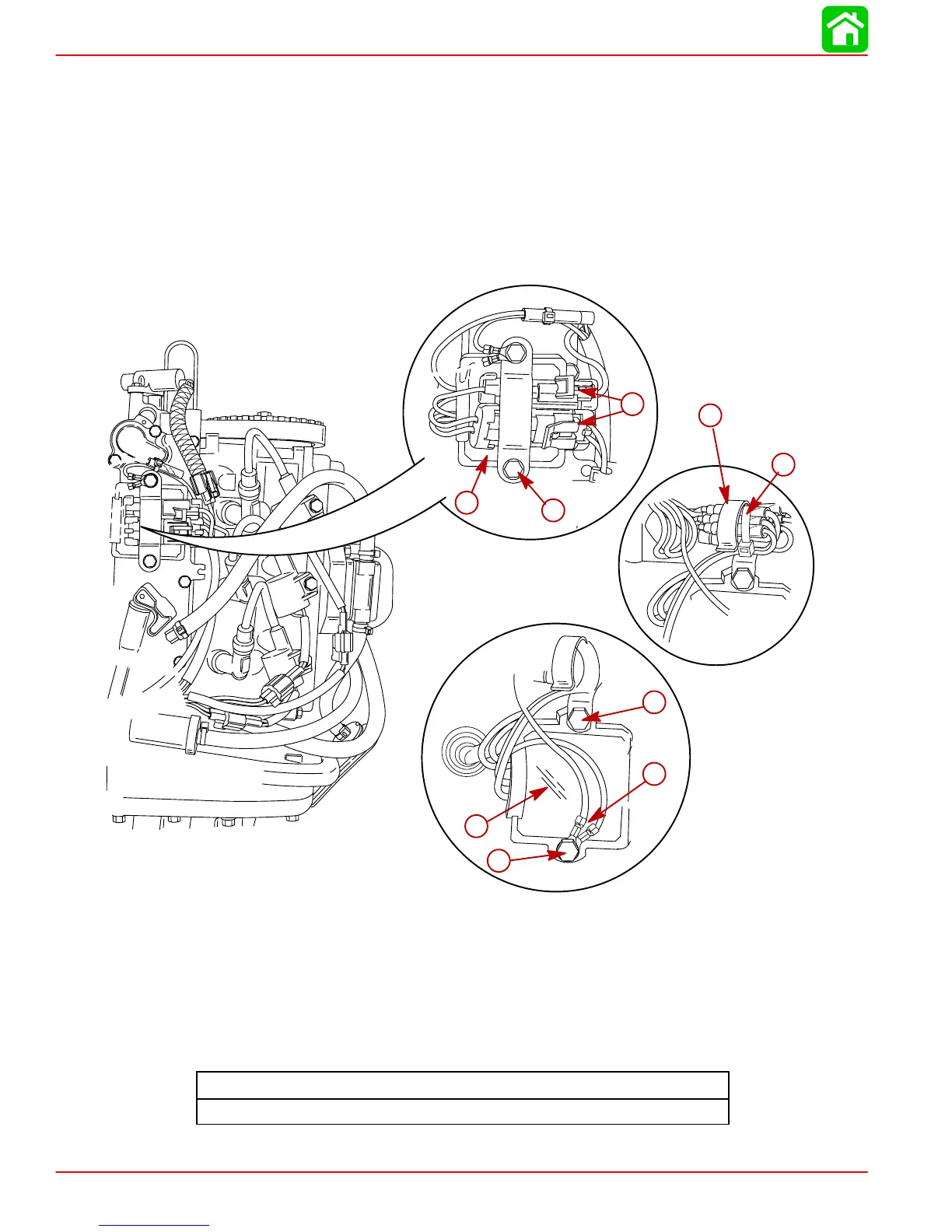

a
b
c
d
d
e
d
f
g
59247
a-Voltage Regulator (s/n OG960499 and below)
b-J-Clip (s/n OG960499 and below)
c-Cable Tie (s/n OG960499 and below)
d-Screw (2) M6 x 40
e-Ground Wires (s/n OG960499 and below)
f-Multi Pin Connectors (s/n OG960500 and up)
g-Voltage Regulator (s/n OG960500 and up)
Voltage Regulator Mounting Screw Torque
105 lb. in. (12 N·m)
