IGNITION
90-857046R1 NOVEMBER 2001 Page 2A-29
Ignition Coil Removal and Installation
1. Disconnect spark plug leads from spark plugs.
2. Remove bundled wires from J-clip. Cut cable tie securing wire connectors. Disconnect
wires (BLK/WHT). These steps are required for s/n OG960499 and below.
3. Disconnect ignition coil harness connectors (s/n OG960500 and up).
4. Remove ignition coil mounting screws.
5. Reverse steps for installation.
a
a
59247
b
c
d
e

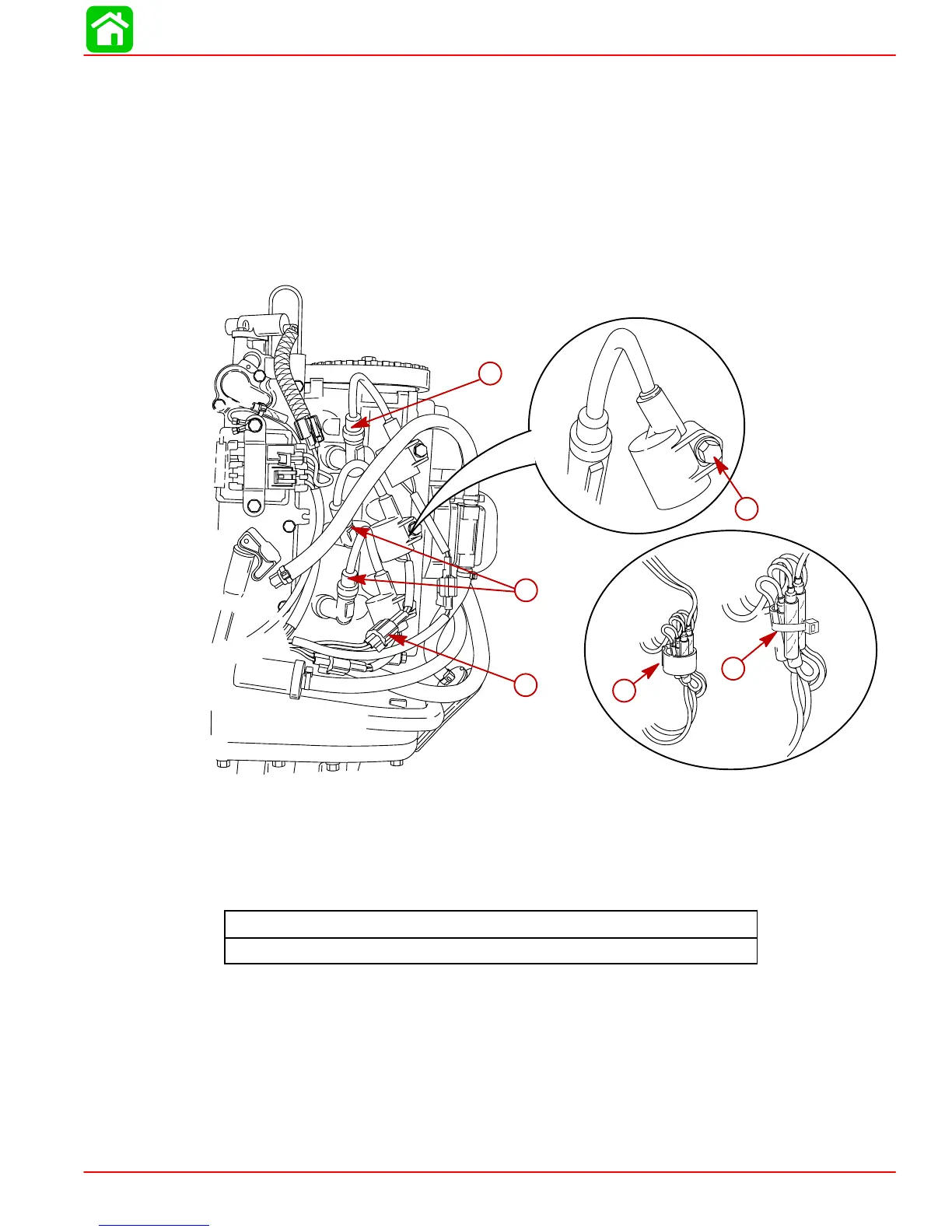

a-Spark Plug Leads
b-Coil Mounting Screw (2) M6 x 20
c-J-Clip
d-Cable Tie
e-Harness Connectors (3) (S/N OG960500 and Up)
Ignition Coil Mounting Screw Torque
75 lb. in. (8.5 N·m)
