TILLER HANDLE
90-857046R1 NOVEMBER 2001 Page 7B-9

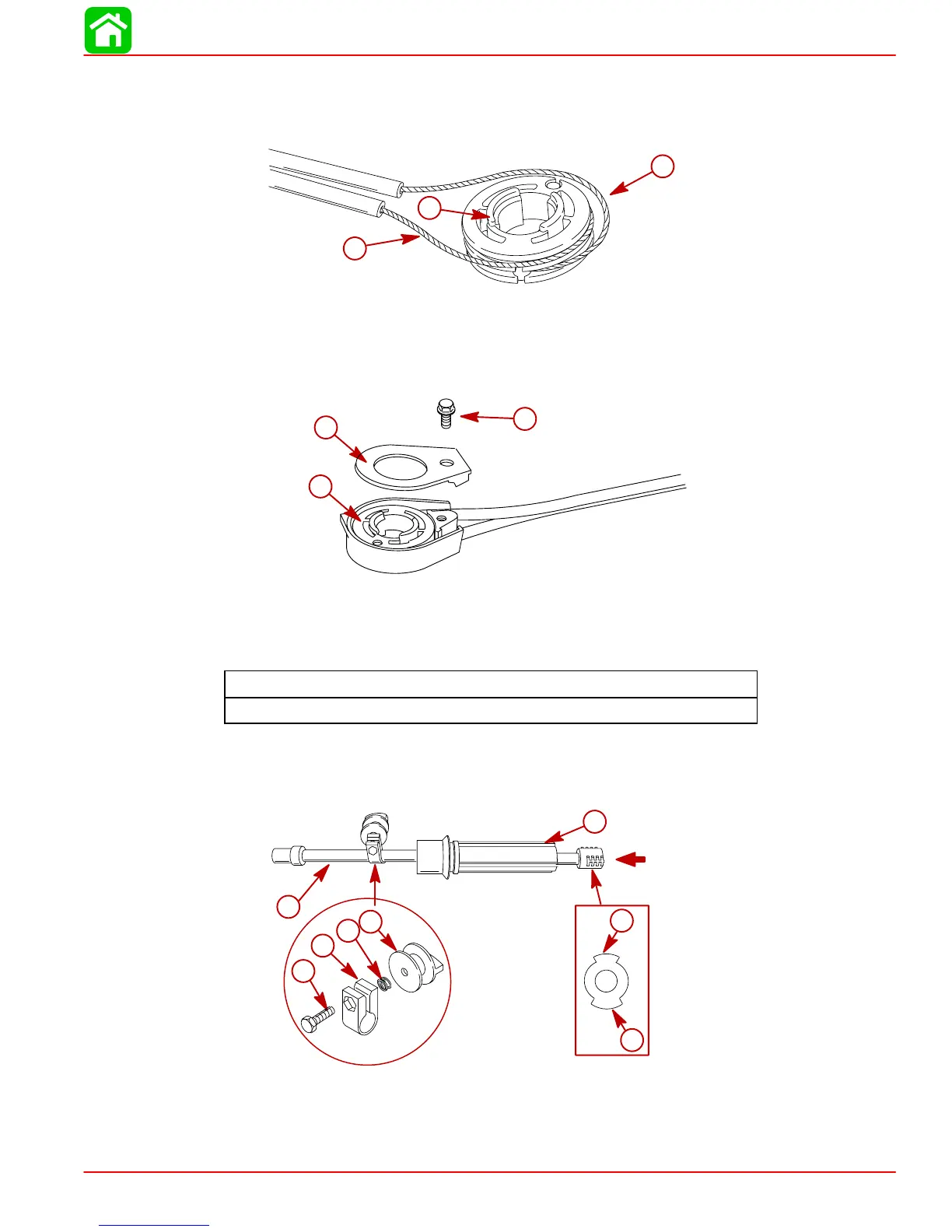

Tiller Handle Reassembly
1. Wrap cables around pulley as shown
a
c
b
a-Short Throttle Cable (30-1/2 in.) Place in Top Groove
b-Long Throttle Cable (40-1/2 in.) Place in Bottom Groove
c-Pulley
2. Place pulley and cables into case. Install cover with screw.
c
a
b
a-Pulley
b-Cover
c-Screw 10-16x
1
/
2
in.
Pulley Cover Screw Torque
20 lb. in. (2.3 Nm)
3. Match tiller tube end with slots in the handle. Pull the tube end into the handle until it
bottoms out.
4. Install the throttle friction knob components on tiller tube.
a
b
c
c
d
e
f
g
a-Tiller Tube
b-Handle
c-Slots In Handle
d-Screw M6x25
e-Lock
f-Spring
g-Knob
