TILLER HANDLE
Page 7B-14 90-857046R1 NOVEMBER 2001

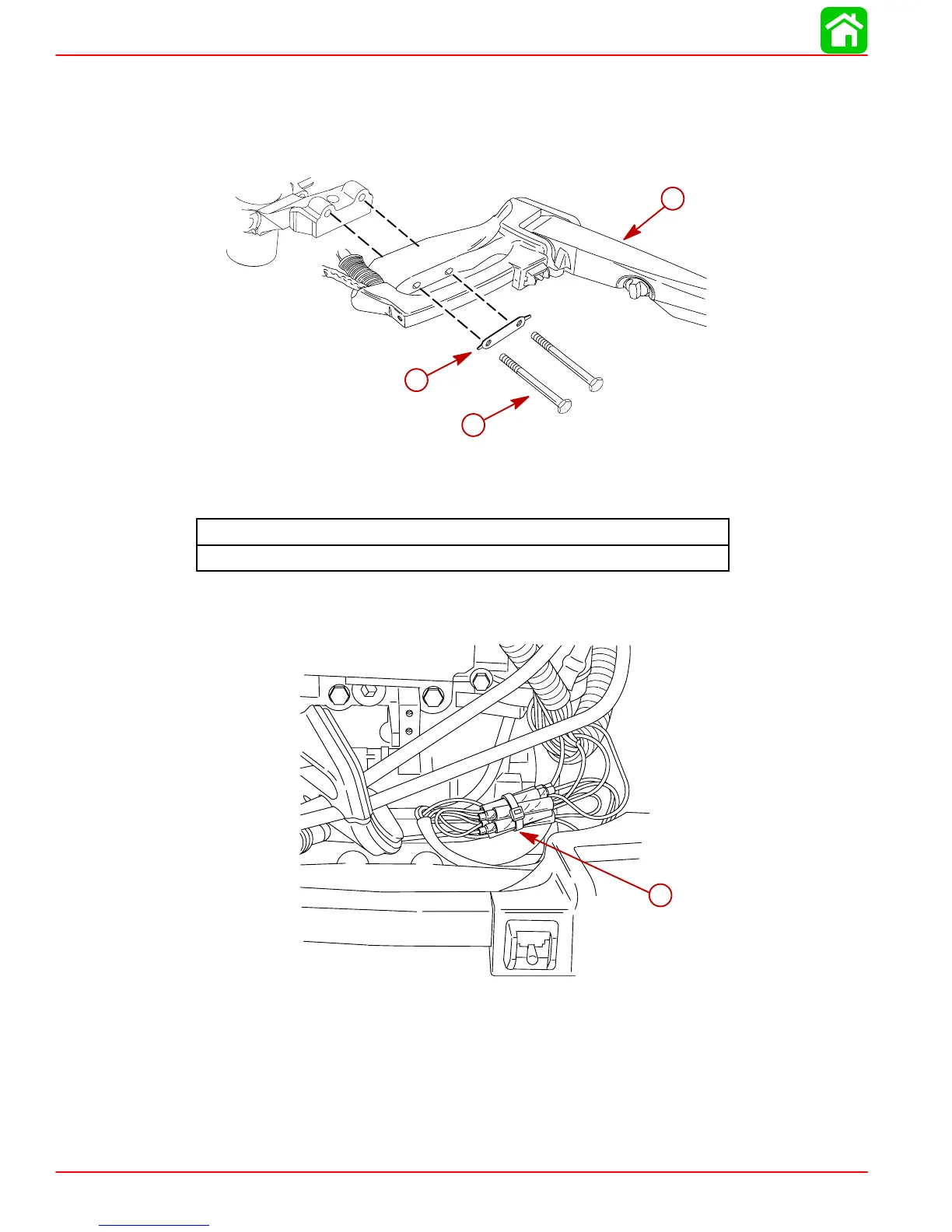

Tiller Handle Installation
1. Install tiller handle, new tab washer, and screws. Tighten screws to specified torque.
2. Bend tabs onto flats of screws.
b
c
a
a-Tiller Handle
b-Tab Washer
c-Screw (2) M10 x 90
Tiller Handle Mounting Screw Torque
35 lb. ft. (47.5 Nm)
3. Connect wires as shown in wiring diagram (on next page).
4. Secure wires at connectors with cable tie as shown.
a
a-Cable Tie
