TILLER HANDLE
90-857046R1 NOVEMBER 2001 Page 7B-15

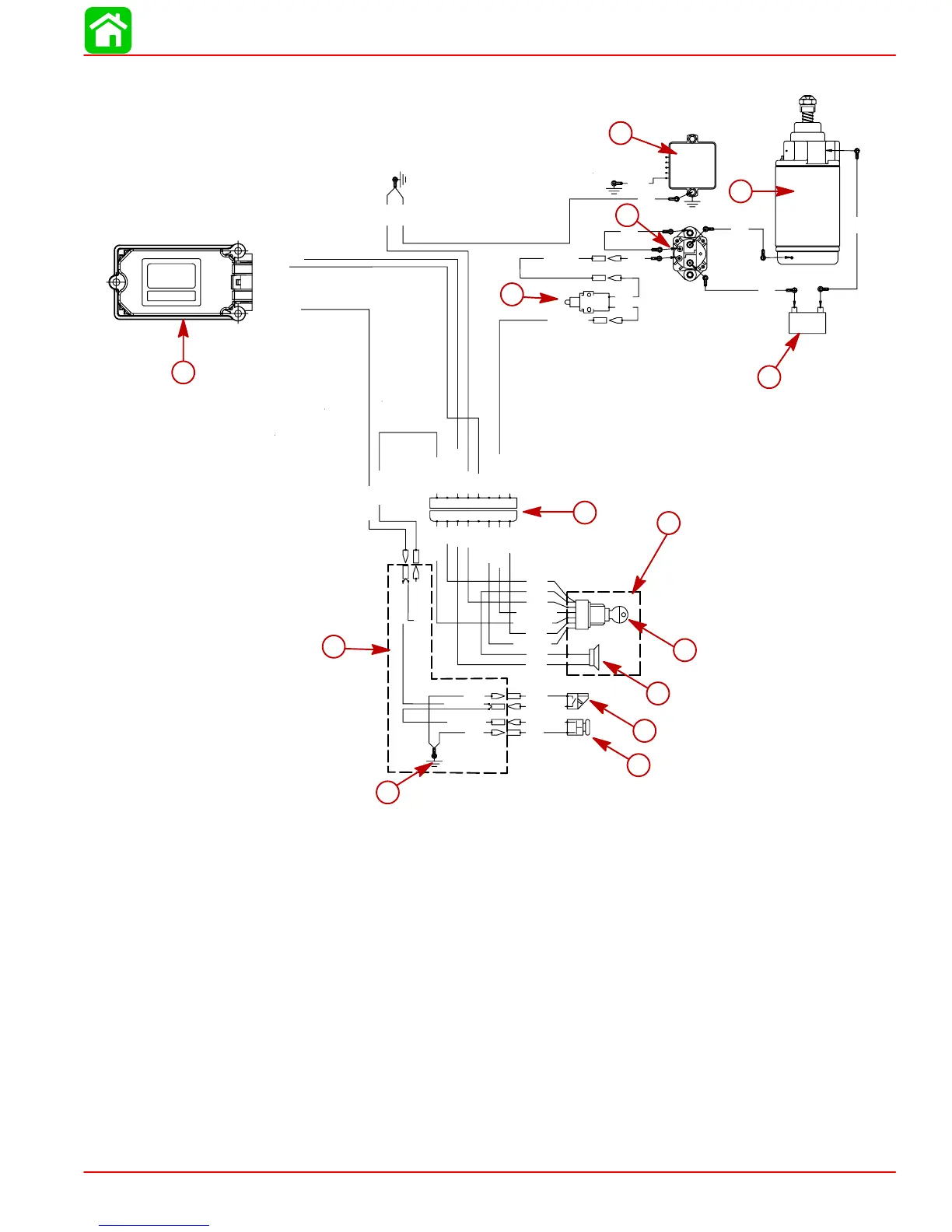

ELECTRIC START TILLER HANDLE WIRING DIAGRAM-30/40 (4-STROKE)
–
+
87654321
–
+
12345678
BLK_YEL
BLK_YEL
BLK_YEL
GRY
BLK_YEL
PPL
YEL_BLK
BLK
BLK
BLK
BLK
BLK
BLK
YEL_RED
BLK
BLK
TAN_LTBLU
GRY
BLK_YEL
BLK_YEL
BLK_YEL
BLK_YEL
BLK BLK
BLK_YEL
BLK_YEL
BLK_YEL
BLK_YEL
PPL
PPL
BLK
YEL_RED
BLK_YEL
RED
YEL_BLK
PPL
TAN
TAN_LTBLU
BLK
YEL_RED
TAN
BLK
YEL_RED
RED
BLK
BLK
BLK
BLK = Black
BLU = Blue
BRN = Brown
GRY = Gray
GRN = Green
ORN = Orange
PNK = Pink
PUR = Purple
RED = Red
TAN = Tan
WHT = White
YEL = Yellow
LIT = Light
DRK = Dark
a
b
c
d
e
f
g
h
i
j
k
l
m
n
YEL_RED
BRN
BLK
a-Ground Harness below Starter Motor M6x16
screw
b-Harness Extension
c-Harness Connection
d-Key Switch Assembly Transom Mount
e-Key Switch
f-Horn
g-Lanyard Stop Switch
h-Push Button Stop Switch
i-Battery
j-Starter Motor
k-Voltage Regulator/Rectifier
l-Start Solenoid
m-Neutral Start Switch
n-ECM
To Next Page
