TILLER HANDLE
Page 7B-16 90-857046R1 NOVEMBER 2001
5. Rotate throttle grip to idle position.
6. Insert the anchor on the shorter throttle cable into the anchor slot on the throttle lever.
7. Secure cable in position by tightening jam nuts onto bracket (finger tighten only).
8. Insert anchor on remaining cable into the anchor slot on the throttle lever.
9. Secure cable in position by tightening jam nuts onto bracket (finger tighten only).
a
e
d
c
b
e

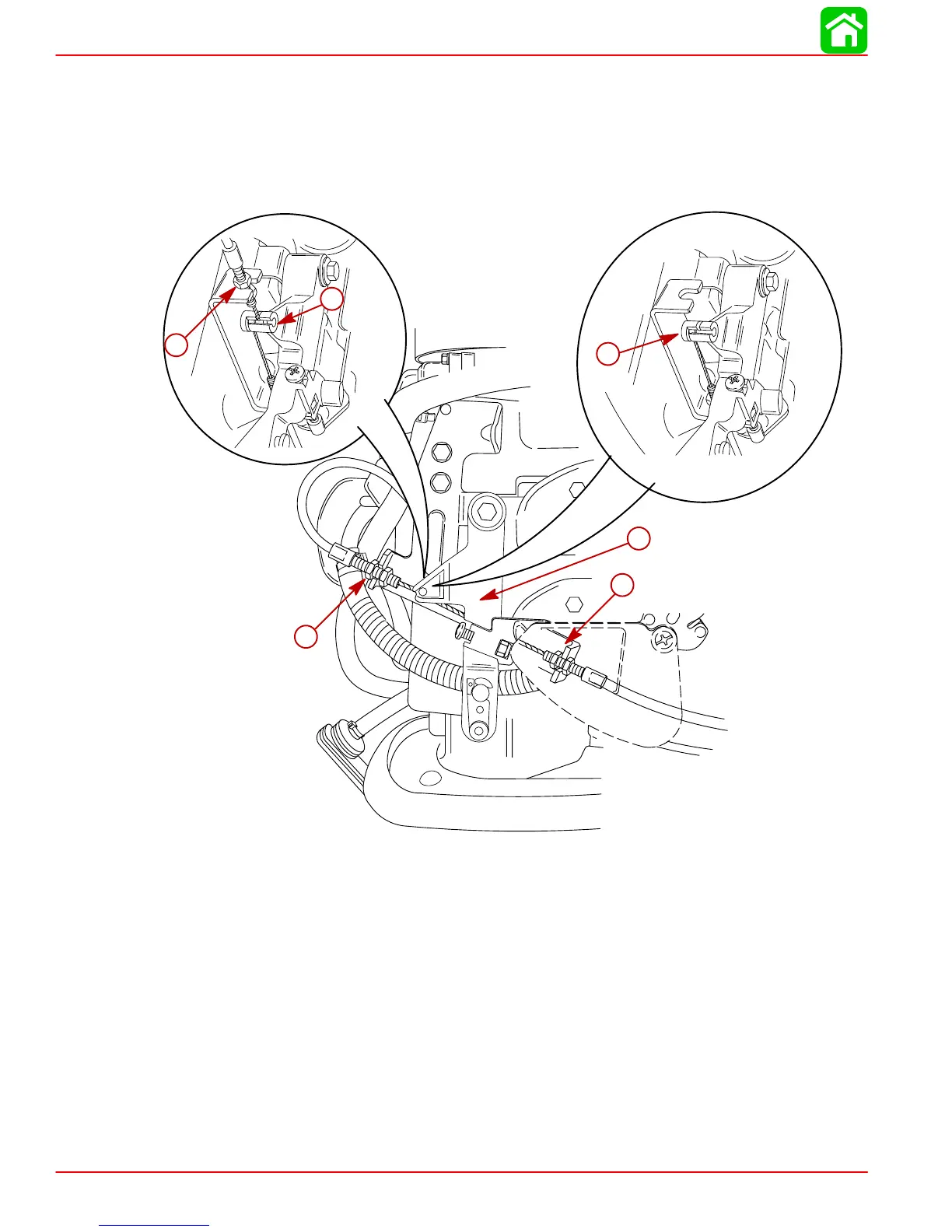

a-Throttle Lever
b-Anchor of Shorter Throttle Cable
c-Jam Nut
d-Anchor of Longer Throttle Cable
e-Jam Nut
58829
