CHARGING & STARTING SYSTEM
Page 2B-4 90-857046R1 NOVEMBER 2001
Battery Charging System
Description (15 Ampere)
The battery charging system components are the stator battery charge coils, regulator and
battery. Alternating current (generated in battery charge coils) flows to the regulator, which
changes the alternating current to a regulated direct current for charging the battery.

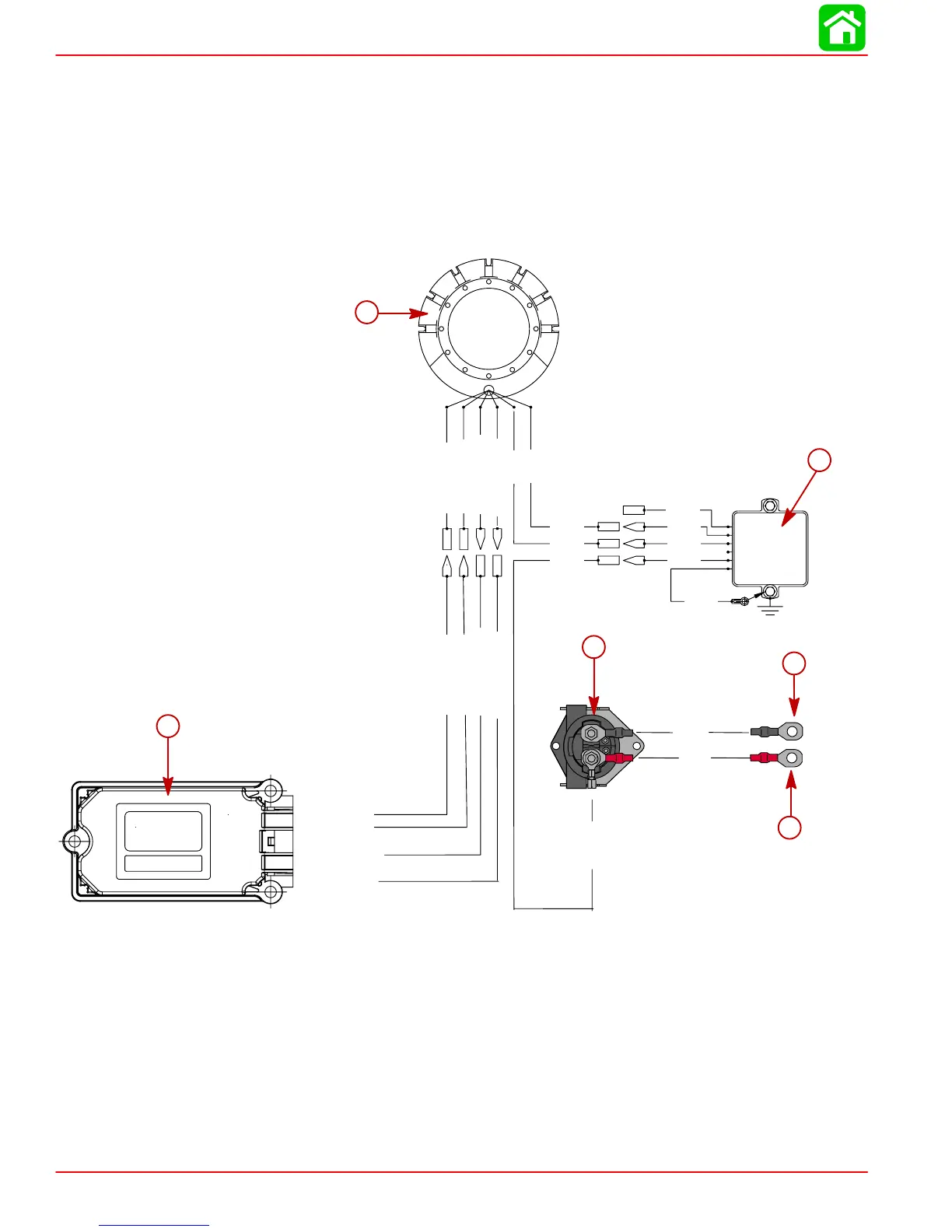

Wiring Diagram (15 Ampere) (S/N OG960499 and Below)
YEL_BLK
YEL_BLK
WHT_GRN
GRN_WHT
BLK
GRY
RED
YEL
YEL
RED
YEL
YEL
YEL
YEL
YEL_BLK
YEL_BLK
WHT_GRN
GRN_WHT
YEL_BLK
YEL_BLK
WHT_GRN
GRN_WHT
RED
b
c
d
f
Blk = Black
Blu = Blue
Brn = Brown
Gry = Gray
Grn = Green
Orn = Orange
Pnk = Pink
Pur = Purple
Red = Red
Tan = Tan
Wht = White
Yel = Yellow
RED
a
BLK
e
a-Stator
b-Voltage Regulator/Rectifier
c-To Starter
d-To Battery Positive (Red) Terminal
e-Start Solenoid
f-ECM
