Mercury 40 FourStroke - Manual Trim Flow Diagrams; Up Circuit

MANUAL TILT ASSIST
Page 5C-4 90-857046R1 NOVEMBER 2001

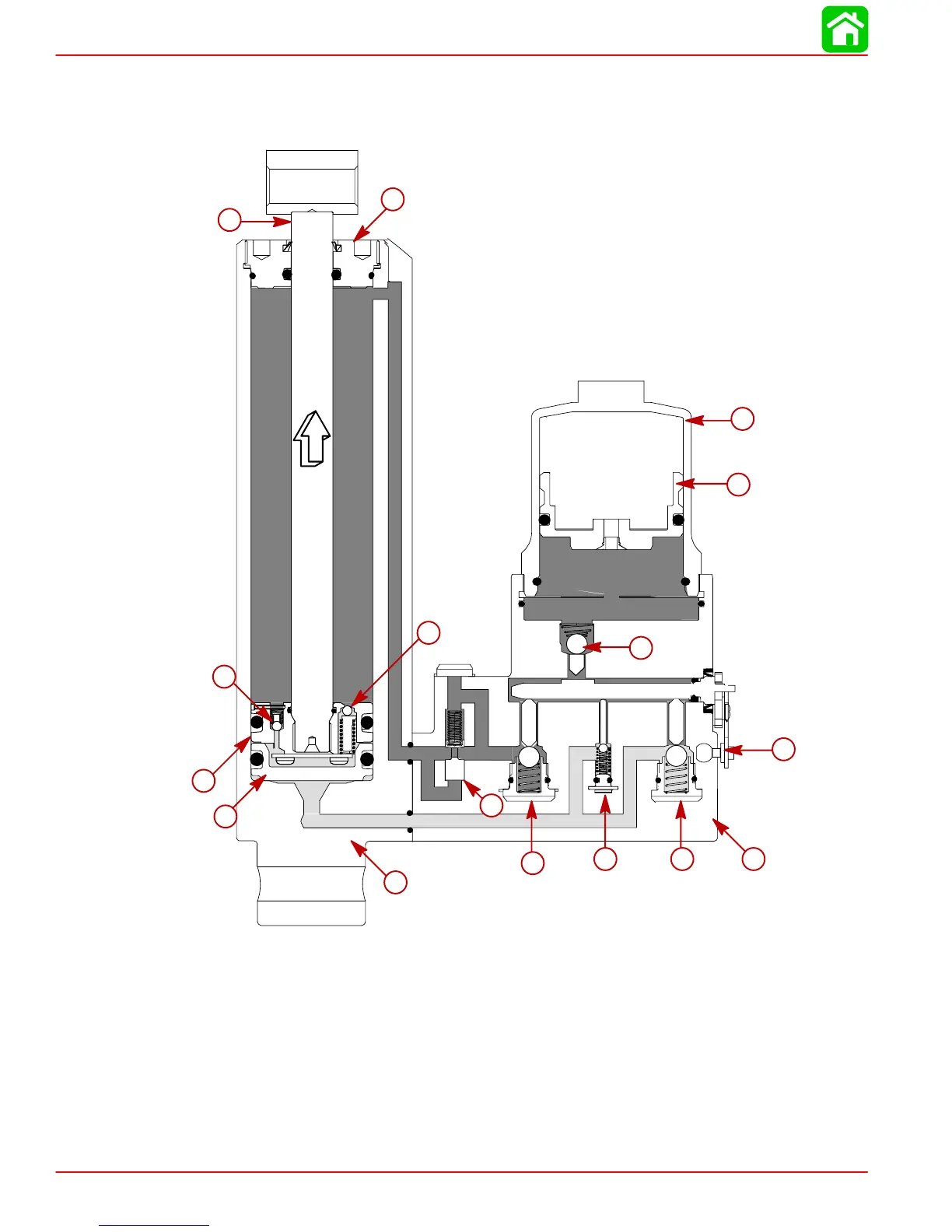

Manual Trim Flow Diagrams
Up Circuit
a
b
c
d
e
f
g
hi
j
k
l
m
n
o
p
a-Shock Rod
b-End Cap
c-Accumulator
d-Accumulator Piston
e-Accumulator Check Valve
f-Camshaft Lever
g-Manifold
h-Down Circuit Fast Transfer Valve
i-Down Circuit Slow Transfer Valve
j-Up Circuit Fast Transfer Valve
k-Surge Valve
l-Cylinder
m-Memory Piston
n-Shock Piston
o-Shock Return Valve
p-Impact Relief Valve
