CHARGING & STARTING SYSTEM
90-857046R1 NOVEMBER 2001 Page 2B-21
Brush Replacement
IMPORTANT: Replace brushes that are pitted or worn to less than 1/4 in. (6.4mm) in
length
.
a
b
c
d
e
f
g

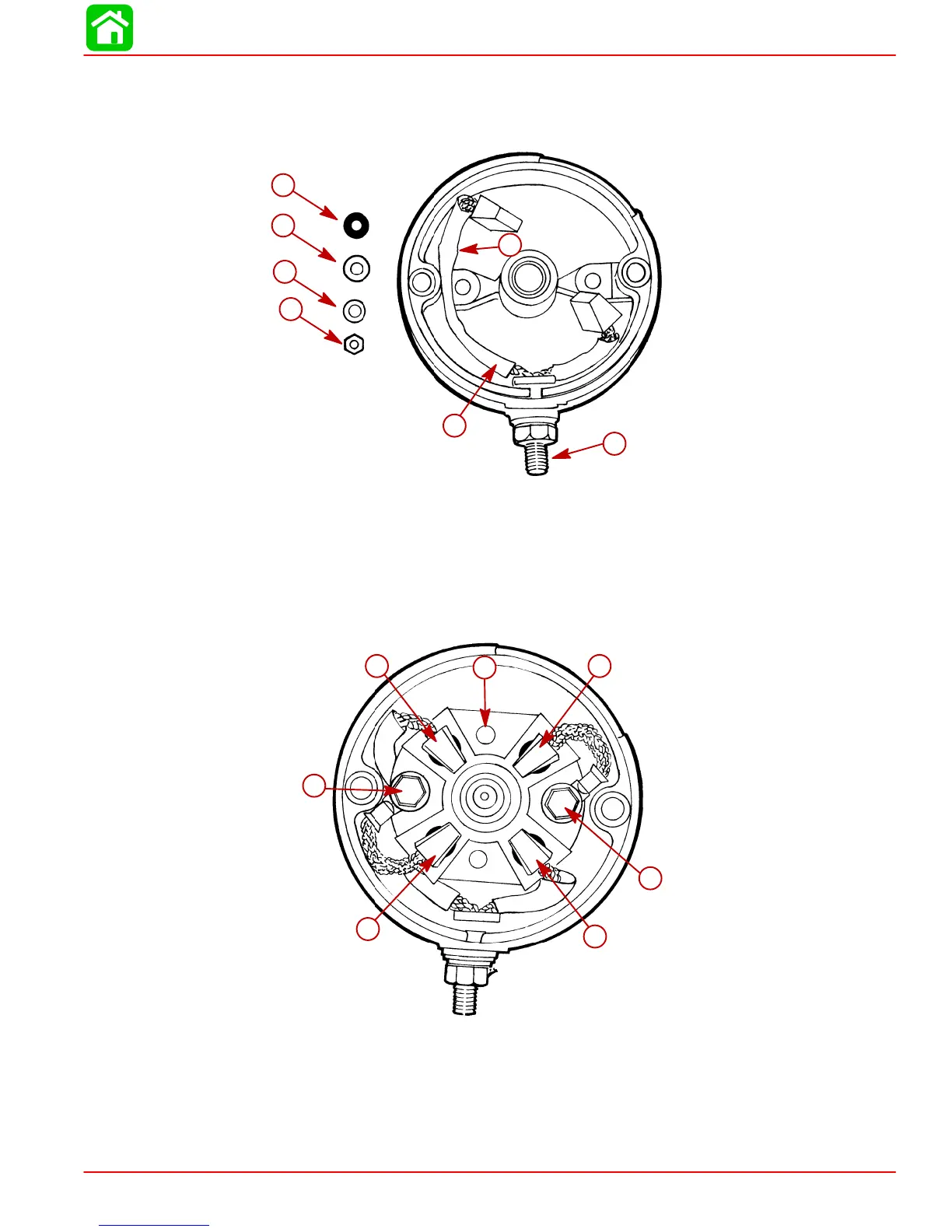

a-Positive (+) Terminal
b-Long Brush Lead
c-Push Lead Into Slot
d-Insulating Washer
e-Flat Washer
f-Lock Washer
g-Nut
a
b
c
d
a
b
d
a-Positive (+) Brushes
b-Negative (–) Brushes
c-Brush Holder
d-Bolts (Fasten Negative Brushes and Holder)
