CHARGING & STARTING SYSTEM
Page 2B-22 90-857046R1 NOVEMBER 2001
Reassembly
1. Lubricate helix threads and drive end cap bushing with SAE 10W oil.
2. Install the pinion, pinion stopper, spring, second pinion stopper, washer, and NEW nut
onto armature shaft.
3. Lightly clamp the armature in a vise and torque nut to specified torque.

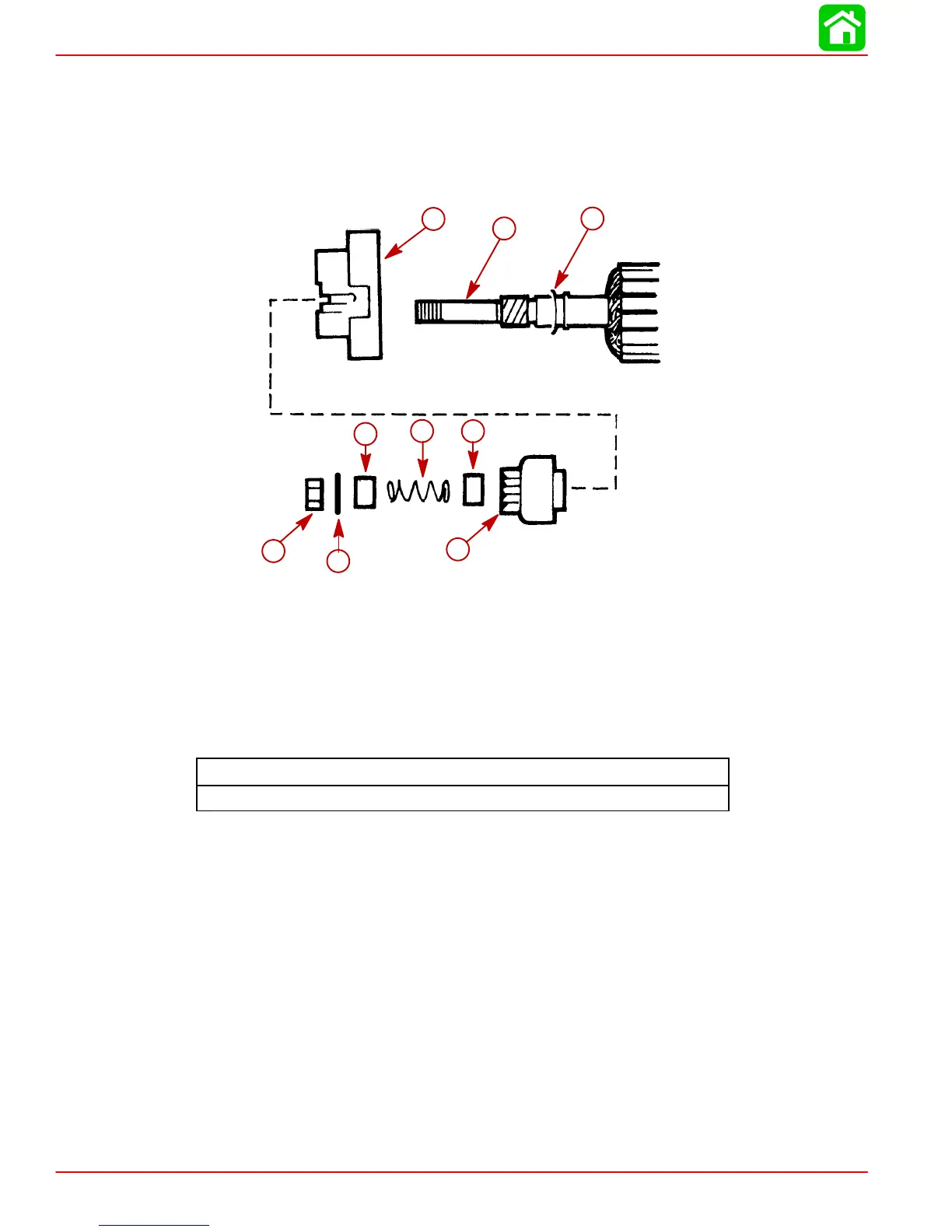

a
b
c
f
d
e
g
h
d
a-Nut (New)
b-Washer
c-Spring
d-Pinion Stopper (2)
e-Pinion
f-Drive End Cap
g-Armature Shaft
h-Washer
Starter Shaft Nut Torque
22.5 lb.-ft. (30.5 Nm)
