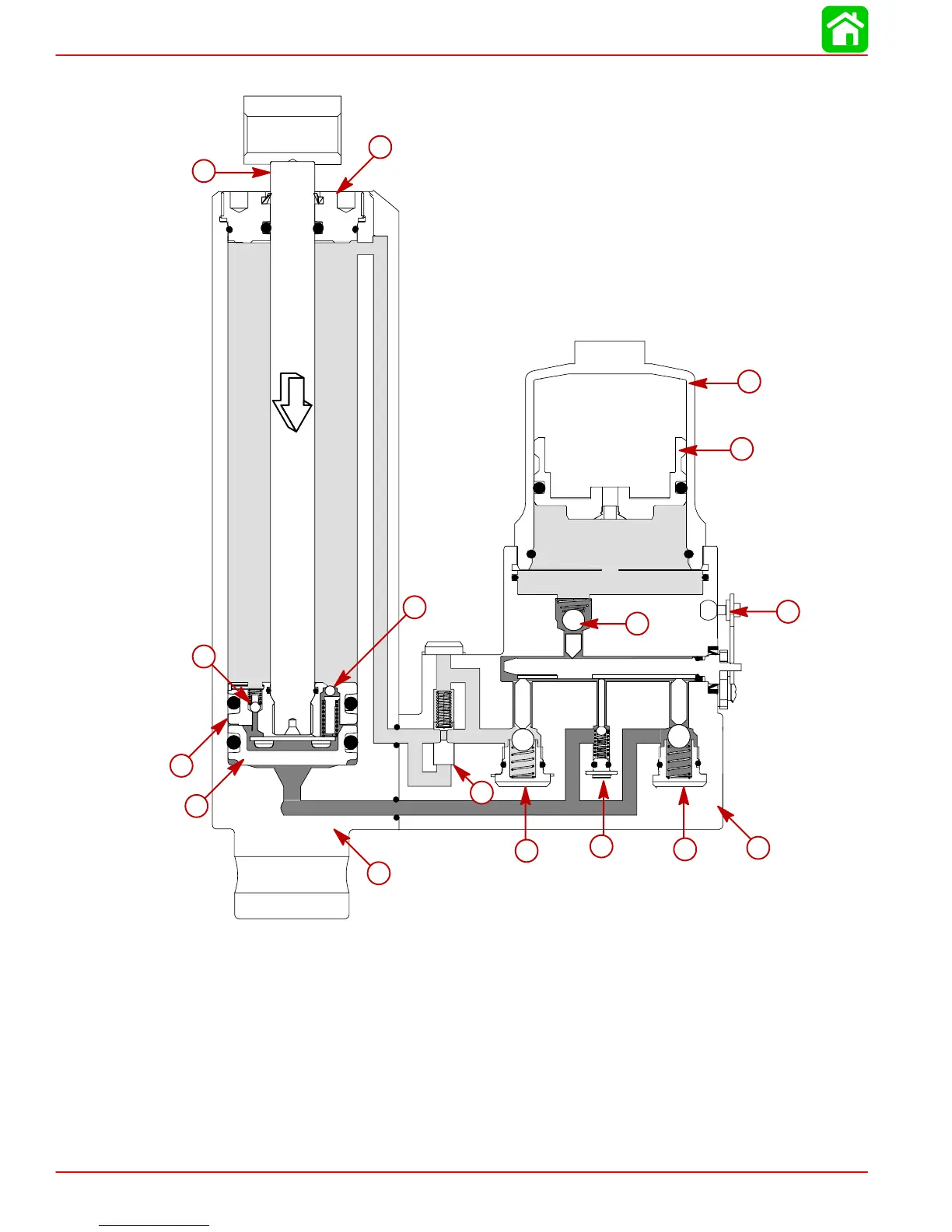

MANUAL TILT ASSIST
Page 5C-8 90-857046R1 NOVEMBER 2001
Slow Tilt Down Under High Thrust
a
b
p
c
d
f
e
g
h
i
j
k
l
m
n
o
a-Shock Rod
b-End Cap
c-Accumulator
d-Accumulator Piston
e-Accumulator Check Valve
f-Camshaft Lever
g-Manifold
h-Down Circuit Fast Transfer Valve
i-Down Circuit Slow Transfer Valve
j-Up Circuit Fast Transfer Valve
k-Surge Valve
l-Cylinder
m-Memory Piston
n-Shock Piston
o-Shock Return Valve
p-Impact Relief Valve
