OUTBOARD MOTOR INSTALLATION
90-857046R1 NOVEMBER 2001 Page 1D-5

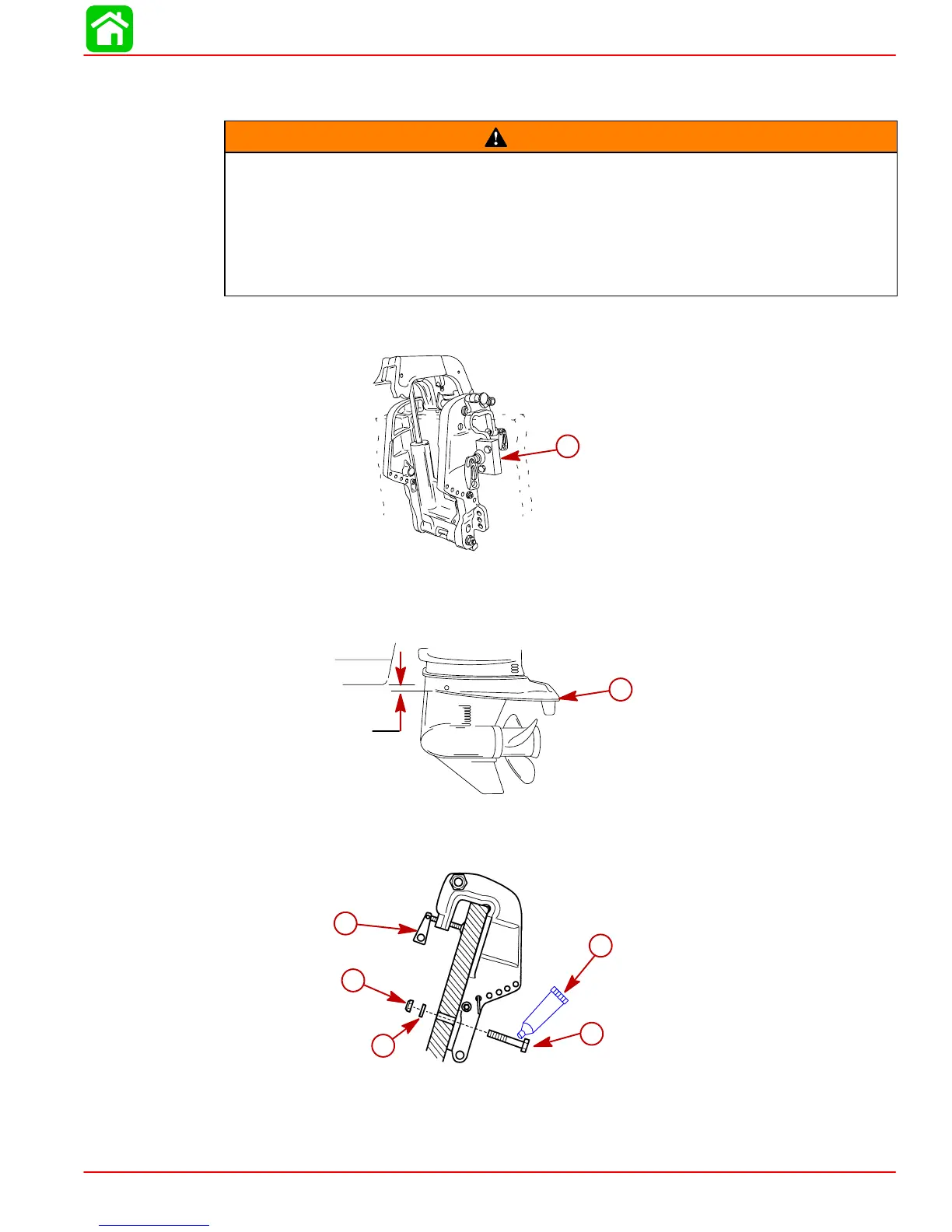

Installing Outboard – Thumb Screw Models
WARNING
Outboard must be fastened to boat transom one of two ways: 1. permanently fas-
tened to transom with thumb screws, and mounting bolts (provided), or 2. secured
to the transom using the optional outboard mounting kit (shown below). Should the
outboard strike an underwater object or be steered into a sharp turn, failure to fas-
ten outboard correctly to the boat transom with mounting bolts or optional mount-
ing kit could result in outboard ejecting suddenly off boat transom causing serious
injury, death, boat damage, or loss of outboard.
IMPORTANT: Optional outboard mounting kits shown, must be used if outboard will not be
permanently fastened to the transom with mounting bolts.
a
a-Outboard Mounting Kit Part No. 812432A4
1. Center outboard on the transom. Install the outboard so that the anti-ventilation plate
is in line or within 1 in. (25 mm) below the bottom of the boat.
0 - 1 in.
(0 - 25mm)
a
a-Anti-Ventilation Plate
2. Fasten outboard with provided mounting hardware shown.
a
b
c
d
e
a-1/2 in. Diameter Bolts (2)
b-Flat Washers
c-Locknuts
d-Marine Sealer - Apply to Shanks of
Bolts, Not Threads
e-Thumb Screws - Tighten Securely
To Next Page
