MANUAL TILT ASSIST
Page 5C-16 90-857046R1 NOVEMBER 2001
Hydraulic System Troubleshooting
Refer to disassembly/reassembly instructions (following) if disassembly is required when
servicing.
IMPORTANT: After debris or failed components have been found (during trouble-
shooting procedure), it is recommended that unit be disassembled completely and
all o-rings be replaced. Check ball components and castings must be cleaned using
engine cleaner and compressed air or replaced prior to reassembly.
Support outboard with tilt lock lever when servicing manual tilt system.
1. Check manual release cam adjustment. Cam must open and close freely. Adjust cam
link rod as necessary.

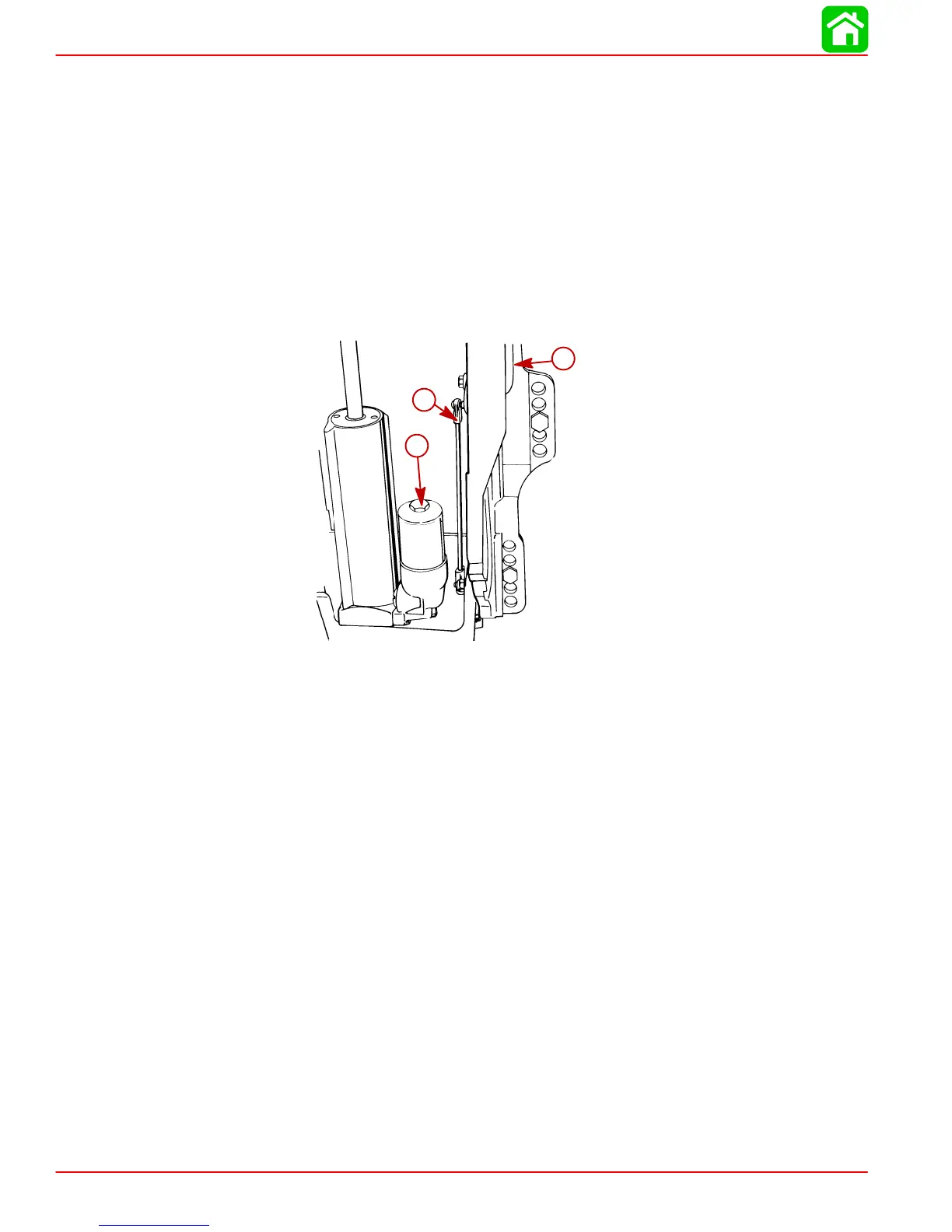

51143
b
a
c
a-Link Rod
b-Manual Release Lever
c-Accumulator
