POWER TRIM
Page 5B-36 90-857046R1 NOVEMBER 2001
Memory Piston Removal

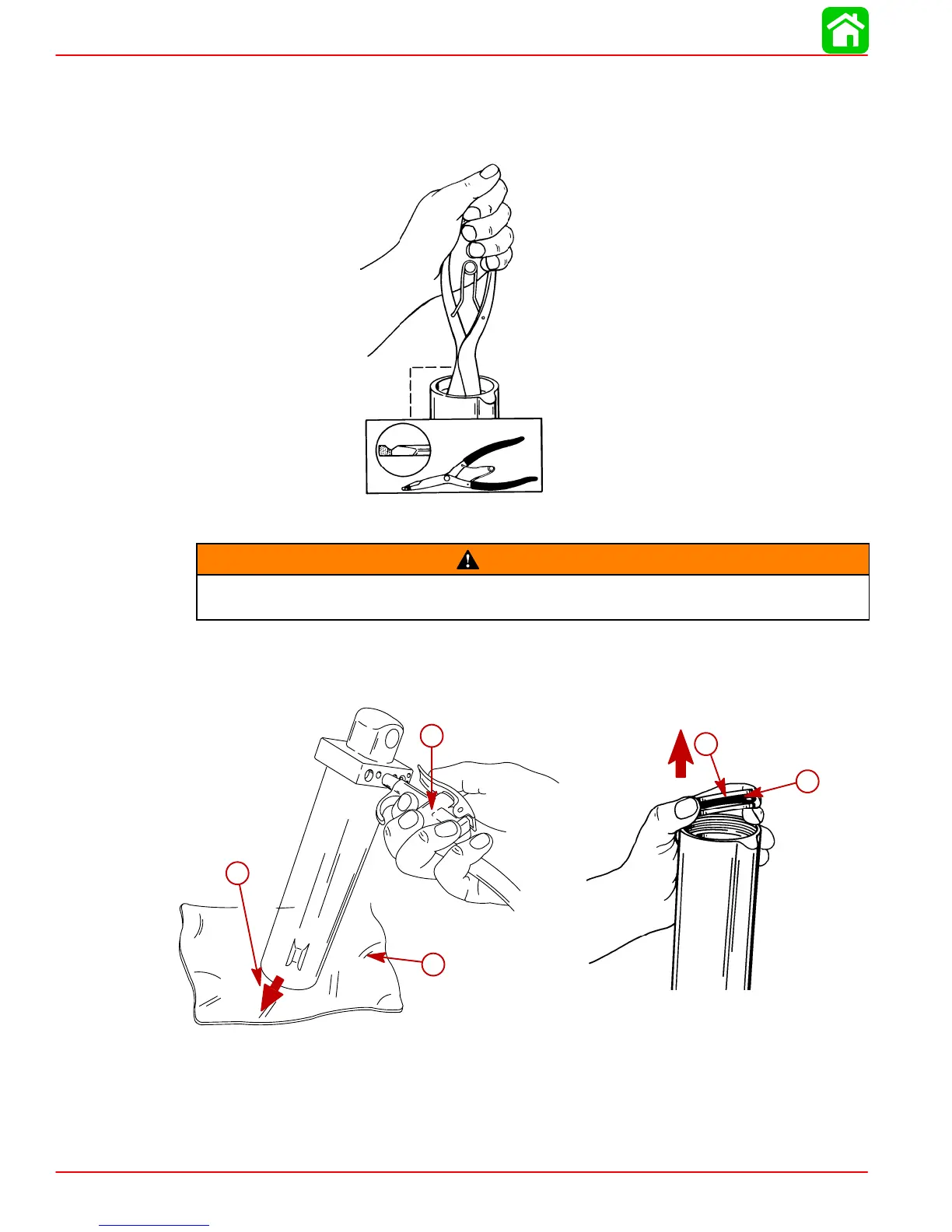

1. Remove memory piston from cylinder using one of two methods:
a. Using lock ring pliers (P/N 91-822778A3) or suitable tool.
51144
b. Blowing compressed air into manual release valve hole using air nozzle.
WARNING
Memory piston cup may be expelled at a high velocity when air pressure is applied.
Failure to place cylinder as shown below could result in personal injury.
NOTE: Point cylinder opening down and away. Use a shop rag or towel to avoid damage
to the memory piston.
2. Remove o-ring from memory piston.
51144
d
e
55466
a
c
b
a-Adaptor/Air Hose
b-Memory Piston Exit
c-Shop Rag
d-O-Ring
e-Memory Piston
To Next Page
