POWER TRIM
90-857046R1 NOVEMBER 2001 Page 5B-35
8. Inspect check valve for debris; clean debris from check valve if found. If debris cannot
be cleaned from check valve, replace shock piston as an assembly.
9. Clean shock and components with compressed air.

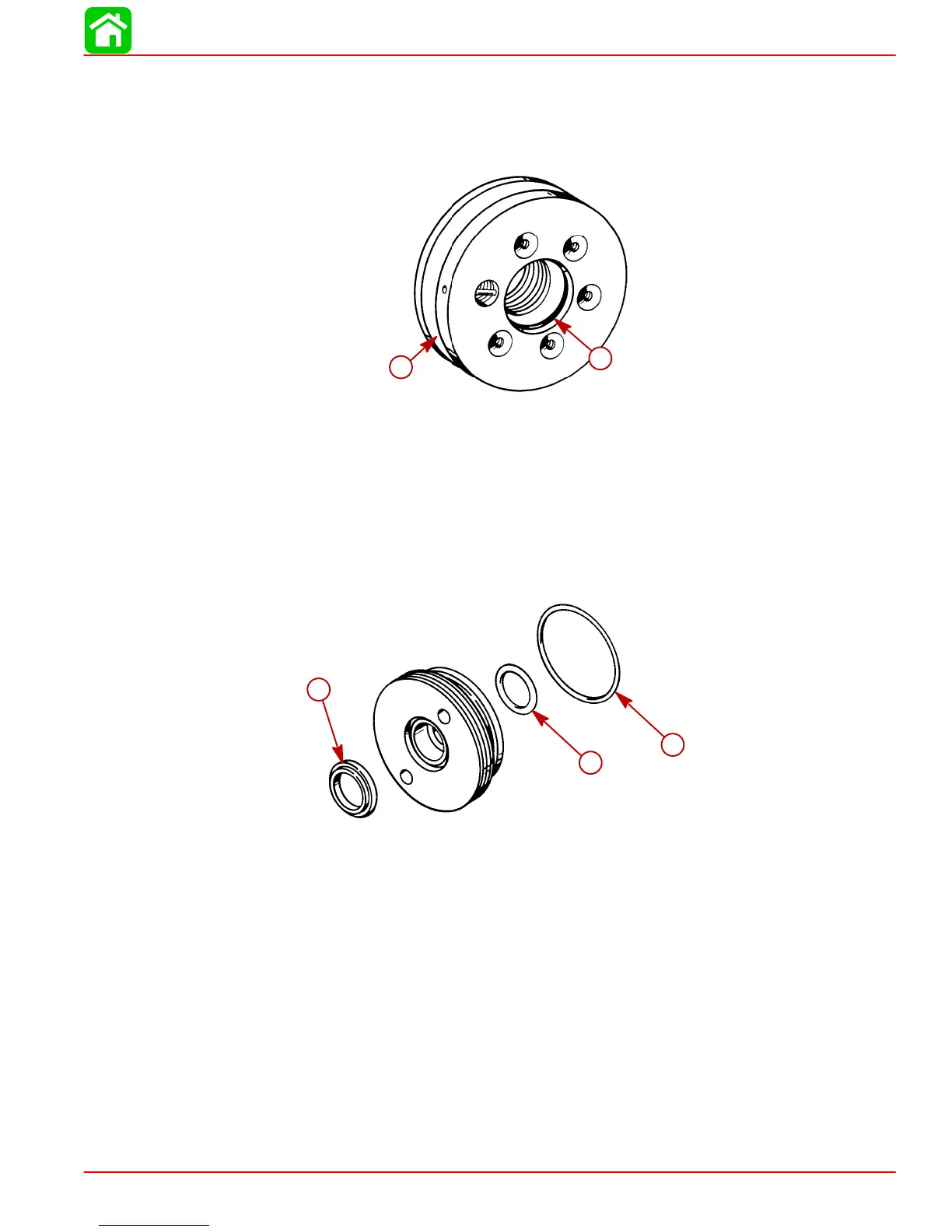

10. Remove inner o-ring from shock rod piston.
51199
a
b
a-Shock Piston
b-O-ring
11. Remove cylinder end cap assembly from shock rod.
12. Inspect shock. If wiper (located in cap) has failed to keep rod clean, replace wiper.
13. Place end cap on clean work surface.
14. Remove rod wiper, inner o-ring, and outer o-ring.
51145
a
b
c
a-Rod Wiper
b-Inner O-ring
c-Outer O-ring
To Next Page
