OUTBOARD MOTOR INSTALLATION
90-857046R1 NOVEMBER 2001 Page 1D-11

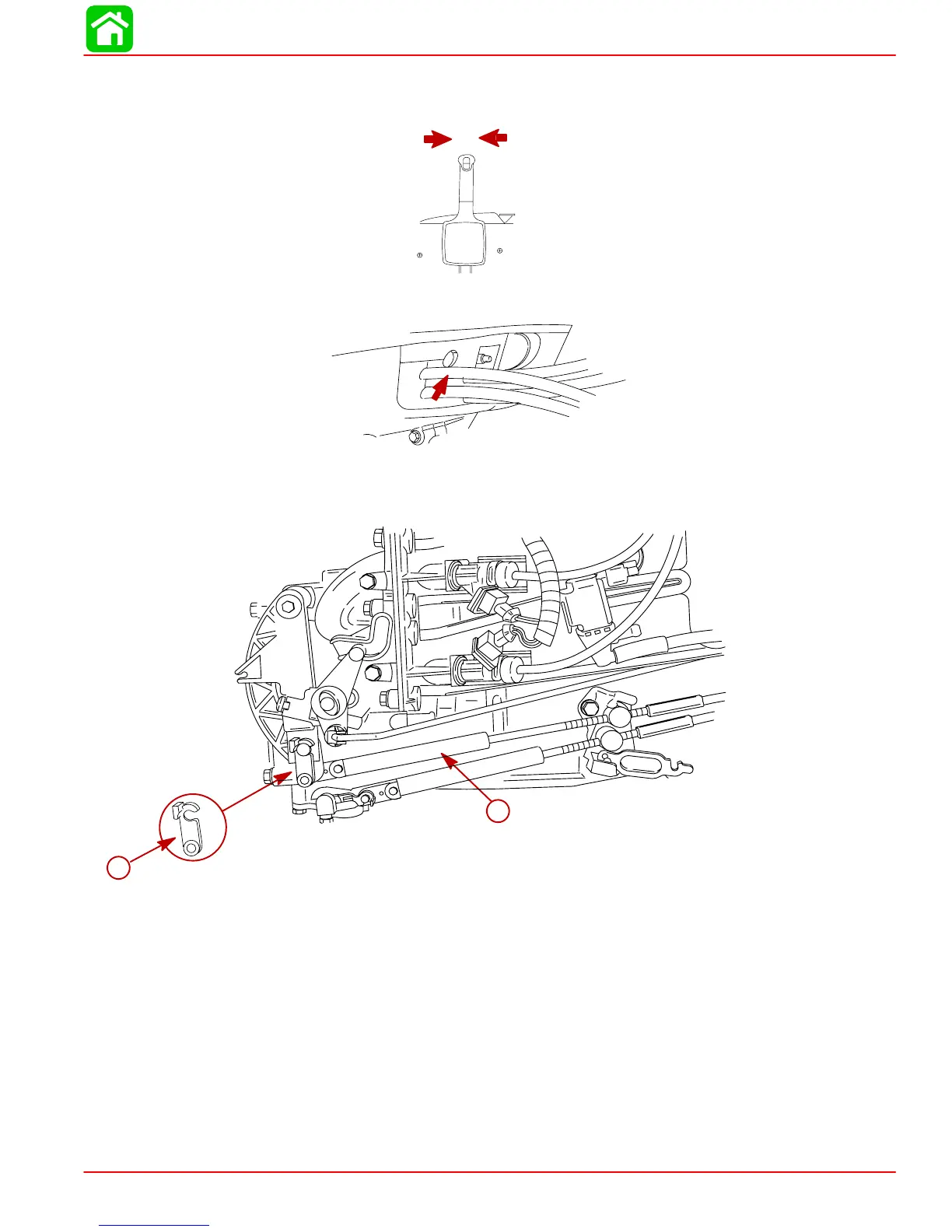

Throttle Cable Installation
1. Position remote control into neutral.
N
2. Fit throttle cable through rubber grommet.
3. Install throttle cable with retainer pin. Lock retainer pin in place.
4. Place throttle cable onto the throttle lever pin. Lock in place with retainer.
a
b
a-Throttle Cable
b-Retainer
